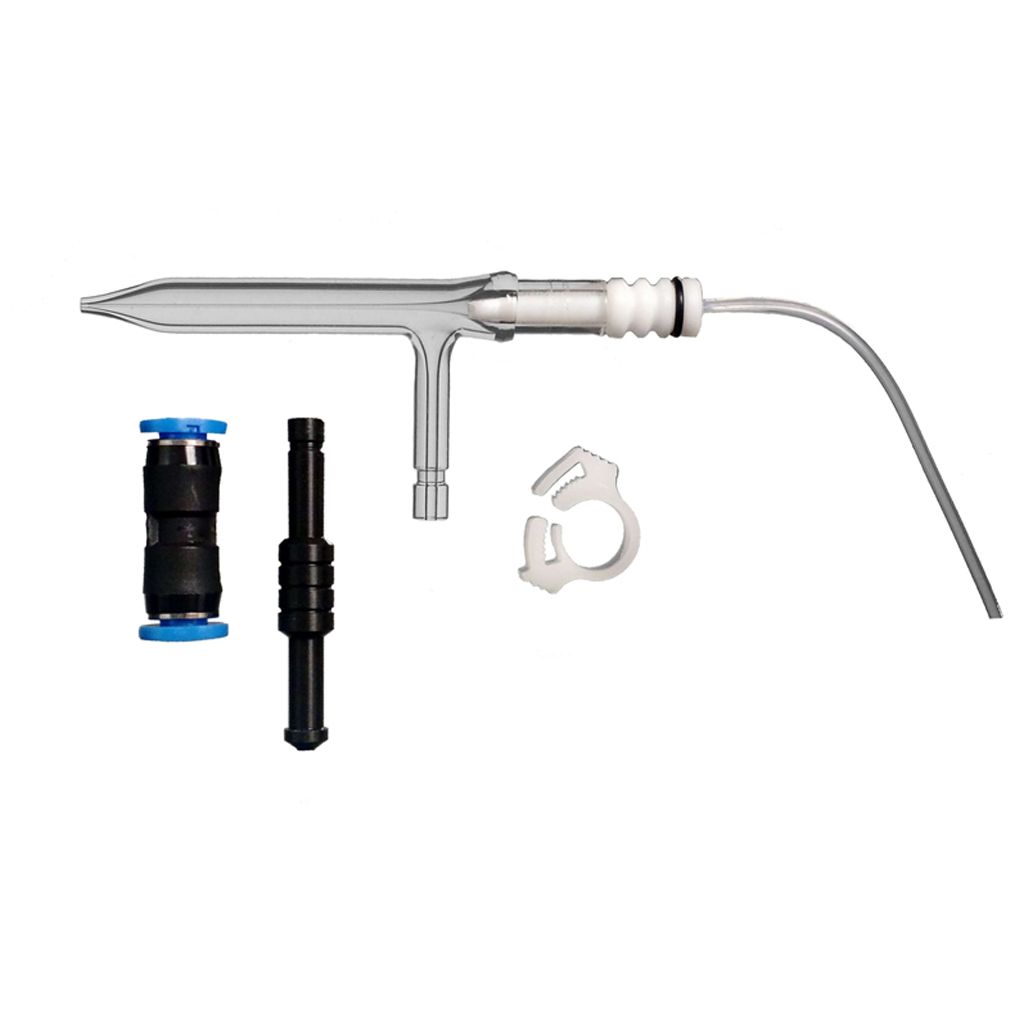

Concentric Nebulizer High-Solids 0.7 L/min Ar 2mL/min 30psi AC

$538.65

Pyrex, Aerosalt (High-Solids) Nebulizer, 0.7 L/min Ar, 30 psi, 2 mL/min, Quick Disconnect, Argon Connect

Description

Concentric Nebulizer High-Solids 0.7 L/min Ar 2mL/min 30psi AC

Pyrex, Aerosalt (High-Solids) Nebulizer, 0.7 L/min Ar, 30 psi, 2 mL/min, Quick Disconnect, Argon Connect

P/N Cross Reference(s)
Agilent (Varian): 2010096400 or G8010-60255
Glass Expansion: ARG-07-USS2
PerkinElmer: N0775345
Thermo: 842312051331
Thermo TJA: 14186300

P/N: 500-65QDAC

The function of the nebulizer in inductively coupled plasma–mass spectrometry (ICP–MS) is to convert a liquid sample into an aerosol for introduction into the plasma.

Concentric Nebulizer High-Solids 0.7 L/min Ar 2mL/min 30psi AC

A concentric nebulizer is a common nebulizer for inductively coupled plasma (ICP) mass spectrometry (ICP-MS) and ICP-OES. It’s called concentric because the sample line is concentric within the gas line.

The nebulizer has a central capillary containing liquid and an outer capillary containing gas. As a result of its structure, the gas pulls the liquid into the gas stream, breaking it into a fine mist as it moves through. This process uses the Venturi Effect, which occurs when a fluid’s pressure decreases as it speeds up while moving through a constricted area.

Application Determines Best Material

Concentric nebulizers are often recommended for ICP-MS because they produce a fine aerosol with a narrow size range at low flow rates. In fact, they can be made from glass, quartz, or PFA, depending on the application:

  • Glass: For routine applications.
  • Quartz: Recommended for trace analysis of aqueous or organic samples.
  • PFA: Recommended for semi-conductor process chemicals, as it’s inert to HF and self-aspirates.

One potential drawback of concentric nebulizers is that they can clog when running samples with particulates. However, you can avoid issues like this with daily cleanings, especially during heavy use.
