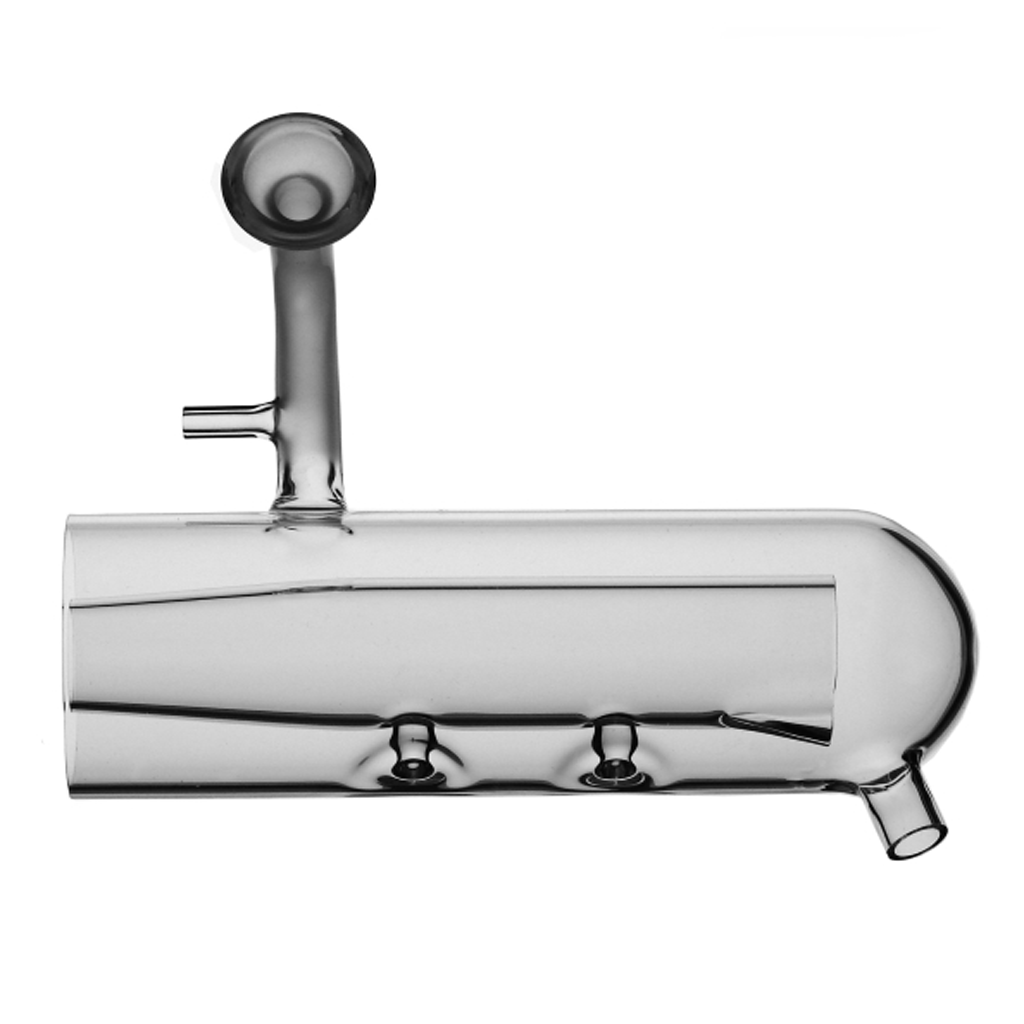

Quartz Spray Chamber Scott UHMI – 900-17

$739

Standard, Scott Style, Ultra High Matrix Introduction (UHMI)



Agilent 7850, 7900, 8900 with UHMI.





Description

Quartz Spray Chamber Scott UHMI – 900-17

Part Number:
PG900-17

Cross Reference(s)
Agilent: G8400-67150

Instrument Compatibility:
Agilent 7850, 7900, 8900 with UHMI

Detail:
Quartz, Scott Style, Ultra High Matrix Introduction (UHMI)

Standard Quartz Spray chamber, Scott Style, double-pass

For use with UHMI or no aerosol gas dilution by plugging Argon dilution gas port on spray chamber outlet.

An Overview of the Scott-Style Spray Chamber.

A Scott-style spray chamber is an integral component of Inductively Coupled Plasma (ICP) technology, used primarily for elemental analysis. This chamber type filters out larger droplets from an aerosol, ensuring that only the finest particles reach the plasma.

As a result, this improves the precision and stability of the ICP readings. Precision Glassblowing offers a range of spray chambers, including the Scott style, each tailored for specific ICP applications.

Industries and Applications.

Industries ranging from environmental monitoring to pharmaceuticals utilize ICP for its ability to detect trace elements. The choice of spray chamber, including the Scott-style, depends on the sample type and the analytical precision required. For example, environmental labs often need chambers that can handle diverse sample matrices without compromising sensitivity.

Do you have questions about Quartz Spray Chamber Scott UHMI 900-17? Call Precision Glassblowing to Learn More.

Do you have questions? Visit our FAQs or Technical Information. And, there are several ways to contact Precision Glassblowing. Click here to pick one that works for you.

Additional information

Material

Quartz

Type

Scott Style, double-pass, UHMI

Drain

8mm

Socket

12/5 Socket

O-ring(s)

None Required
