Description

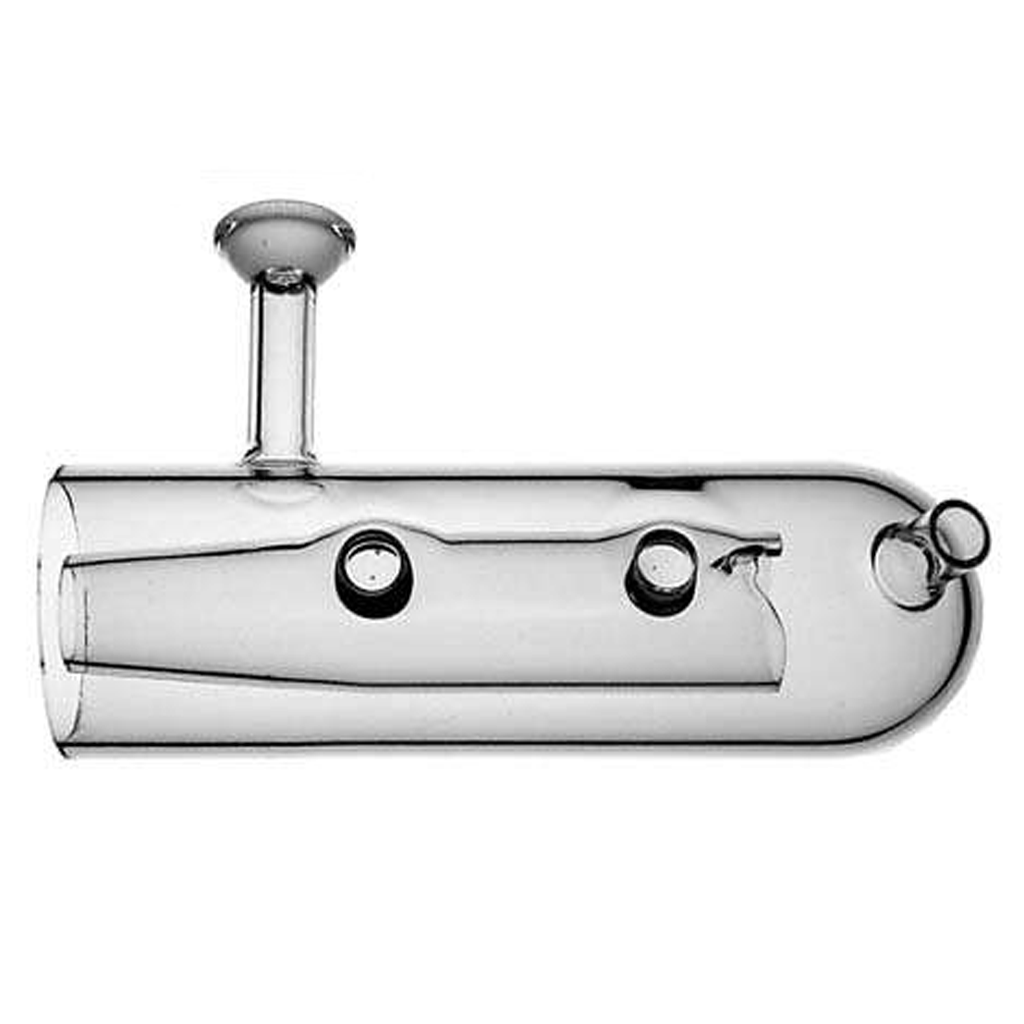

Pyrex Spray Chamber Scott Axial 900-11
Part Number:
PG900-11
Cross Reference(s)
Agilent / HP: G1820-65336
Instrument Compatibility:
Agilent 7500 Series
Agilent / HP 4500
Detail:
Scott Style, Axial, Inner Tube flush with Outer Tube, Sample outlet is 90° from drain.
An Overview of the Scott-Style Spray Chamber.
A Scott-style spray chamber is an integral component of Inductively Coupled Plasma (ICP) technology, used primarily for elemental analysis. This chamber type filters out larger droplets from an aerosol, ensuring that only the finest particles reach the plasma.
As a result, this improves the precision and stability of the ICP readings. Precision Glassblowing offers a range of spray chambers, including the Scott style, each tailored for specific ICP applications.
Spray Chamber Variety and Purpose.
The variety in spray chambers caters to different analytical needs. For instance, some are designed to handle high matrix samples, while others are optimized for quick washout times. As a result, you will notice the differences lie in their design, material, and the specific ICP system they are compatible with. Precision Glassblowing’s offerings ensure that laboratories can select the ideal chamber for their unique requirements.
