Description

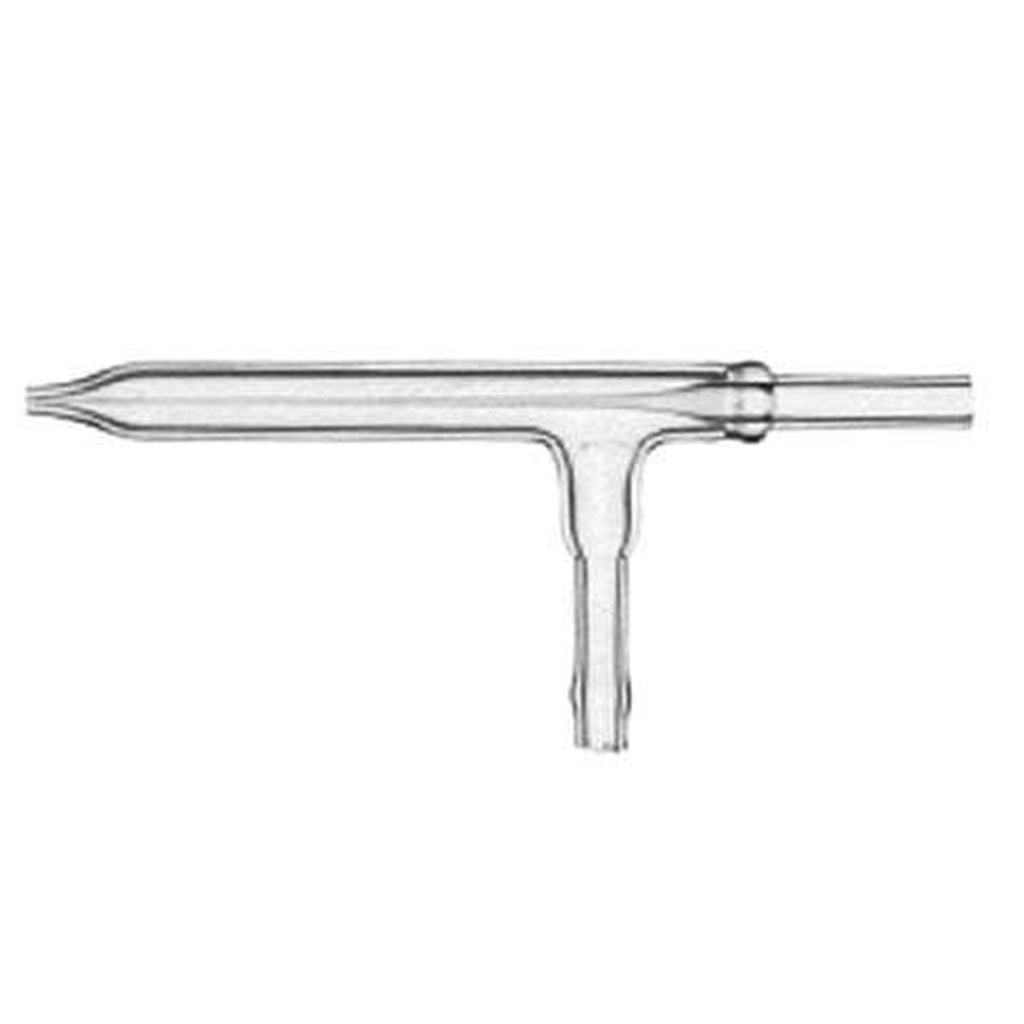

Pyrex Concentric Nebulizer A-Type 1mL/min 30psi – 500-75
Part Number:
PG500-75
Cross Reference(s)
Thermo P/N: 1201318
Instrument Compatibility:
Thermo Fisher Scientific / VG / Finnigan Elemental I, II
Thermo Fisher Scientific / VG / Finnigan X-Series I, II
Thermo Fisher Scientific / VG / Finnigan PlasmaQuad, PQ, PQ2, PQ3, PQ ExCell
Thermo Fisher Scientific / VG / Finnigan Axiom
Thermo Fisher Scientific / VG / Finnigan Genesis
Thermo Fisher Scientific / VG / Finnigan Neptune series
Spectro ICP-AES instruments
Spectroflame
Spectro Ciros series
Detail:
Pyrex, Concentric Nebulizer, A-Type (High Sensitivity) 1.0 lpm Ar. 30psi. 1mL/min.
No Fittings Included
Purchase Fittings: Quick Disconnect (QD) Fitting PG500-QD , Argon Connect (AC) Fitting PG500-AC
Pyrex Concentric Nebulizer A-Type 1mL/min 30psi
A Concentric Nebulizer – A-Type is a glass nebulizer that turns liquid medicine into a fine mist that can be inhaled through a mask or mouthpiece. The nebulizer has a central capillary with liquid and an outer capillary with gas. The gas draws the liquid into the gas stream, breaking it into a mist as it moves through.
Concentric nebulizers are different because they tend to draw liquid samples as they produce the aerosol. Negative pressure at the point of aspiration causes fluid to flow through the sample line without any external pumping action.
Concentric nebulizers can provide excellent sensitivity and stability, particularly with clean solutions. This product is the Concentric Nebulizer A-Type .5mL/min 50 psi Qtz.
The Function of the Nebulizer in ICP
The function of the nebulizer in inductively coupled plasma–mass spectrometry (ICP–MS) is to convert a liquid sample into an aerosol for introduction into the plasma.
The aerosol then passes through the spray chamber and into the plasma, where the sample’s atoms emit light wavelengths that the instrument measures to determine their concentrations.
When it comes to the three types of concentric nebulizers, recent studies indicate that the aerosol generation mechanism for the A-type nebulizer is more efficient than for C and K-type. C-type and K-type nebulizers function similarly, but K-type nebulizers use 30% less argon flow than C-type nebulizers.
Pyrex Concentric Nebulizer A-Type 1mL/min 30psi
Precision Glassblowing is a leading supplier of glass components for ICP that offers high-quality nebulizers, spray chambers, torches, and cones for various brands such as Agilent, PerkinElmer, Thermo-Fisher Scientific, Shimadzu, and more. We also offer custom-made consumables for specific needs.
