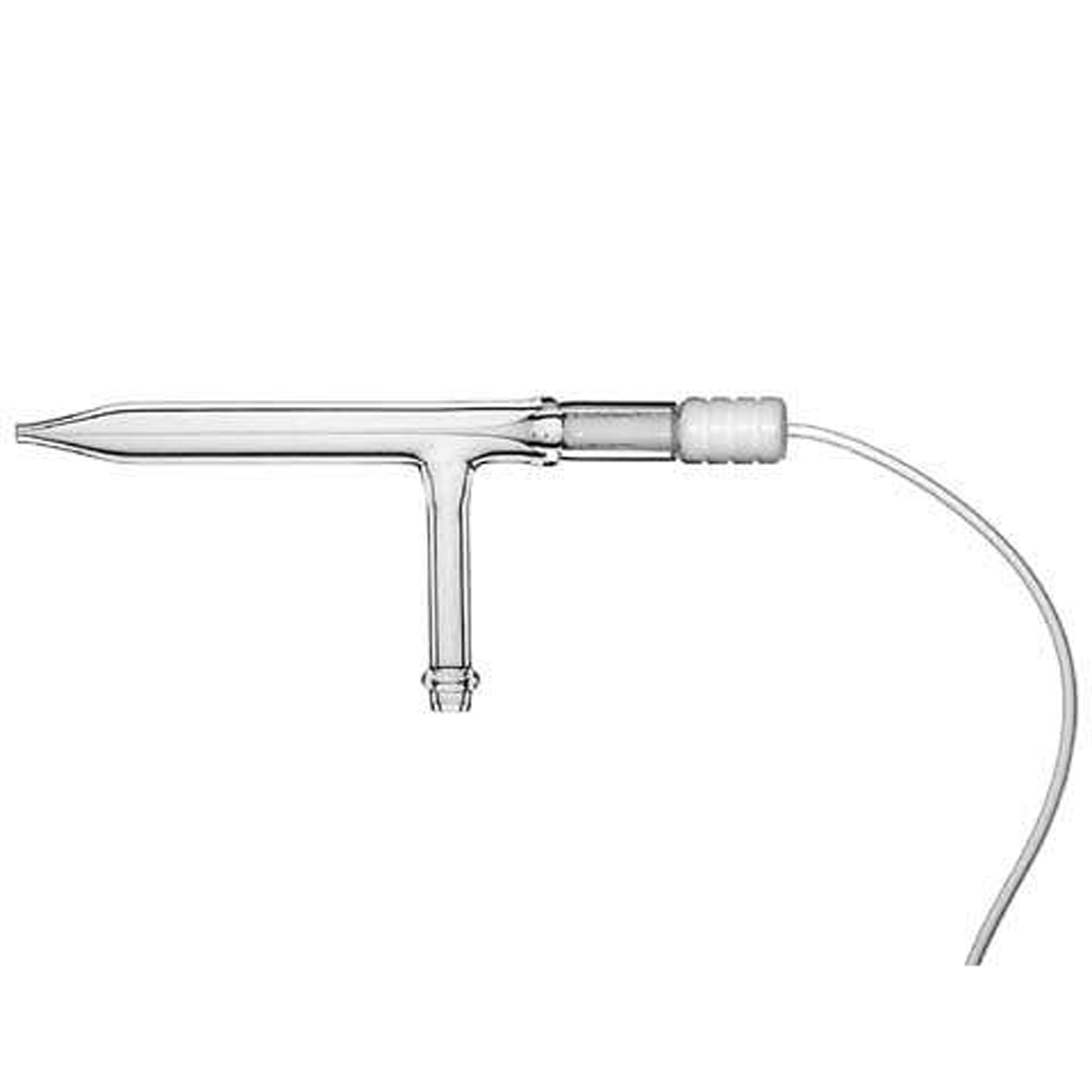

Pyrex C-Type Concentric Nebulizer 2mL/min 30psi QD

$331.13

C-Type Concentric Nebulizer 1 lpm Ar 30psi 2mL/min with Quick Disconnect

Part No.: 500-71QD Category:

Description

Pyrex C-Type Concentric Nebulizer 2mL/min 30psi QD
P/N: 500-71QD

P/N Cross Reference(s)
None Available

Pyrex C-Type Concentric Nebulizer 2mL/min 30psi QD

There’s a lot to unpack in that product name. So, just what does it all mean?  Let’s start at the beginning.

A concentric nebulizer has a central capillary that contains liquid, and an outer capillary that contains gas. The gas pulls the liquid into the gas stream, breaking it into a fine mist as it moves through. This type of nebulizer uses the Venturi Effect to produce an aerosol.

What is the Venturi Effect?

The Venturi effect is a phenomenon that occurs when a fluid’s pressure decreases as it speeds up while passing through a constricted area. The effect is named after its discoverer, the 18th-century Italian physicist Giovanni Battista Venturi.

The Venturi effect is an example of Bernoulli’s principle, which states that an increase in fluid velocity results in a decrease in static pressure. The effect uses the principles of continuity and conservation of mechanical energy.

C-Type for Finer Mist and Microflow

C-type nebulizers feature an internal sample capillary slightly recessed to the nebulizer nose. This design results in a more consistent aerosol and a higher tolerance for dissolved solids than the A Type. The C-type nebulizer operates at 1 L/min Argon at a pressure of 30 or 50 psi and sample uptakes of 1 mL/min, 2 mL/min, 3 mL/min, or Microflow (0.1 – 0.4 mL/min).

Precision Glassblowing is a leading supplier of glass components for ICP that offers high-quality nebulizers, spray chambers, torches, and cones for various brands such as Agilent, PerkinElmer, Thermo-Fisher Scientific, Shimadzu, and more. We also offer custom-made consumables for specific needs. The product featured here is the Concentric Nebulizer C-Type 2mL/min 30psi QD.

Do you have questions?

Visit our FAQs or Technical Information. And, there are several ways to contact Precision Glassblowing. Click here to pick one that works for you.

Additional information

Material

Pyrex

Type

Concentric, C (High Solids)

Fittings

Includes QD (Quick Disconnect)

Argon Flow Rate

1 lpm

Air Pressure

30 psi

Sample Uptake

2 mL/min
