Description

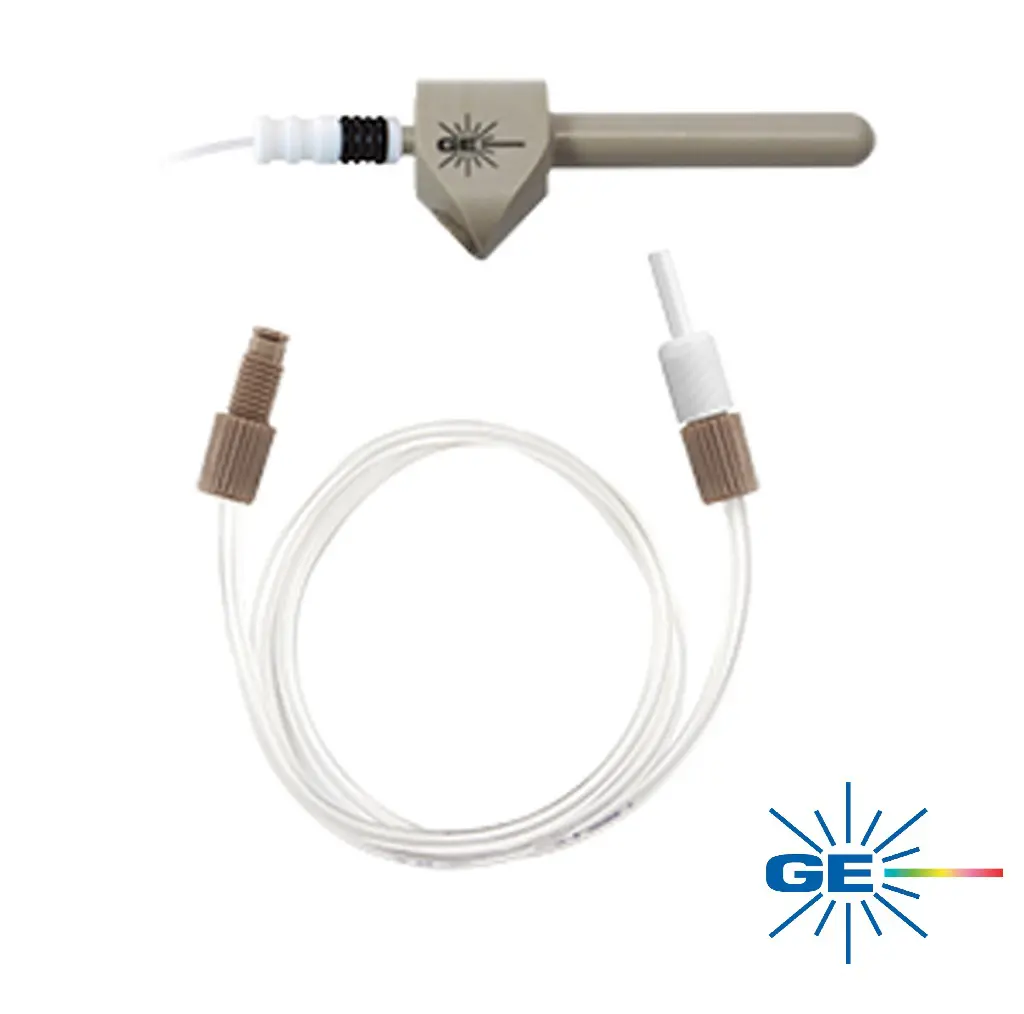

DuraMist DC Nebulizer 0.4mL/min – A13-1-DM04
P/N: A13-1-DM04
Cross Reference(s)
None Available
Instrument Compatibility:
Multiple Instruments
Includes:
- Includes NFT-16-50 UniFit Connector with 0.50mm ID x 1/16 OD x 700mm long tubing (1 piece)
- DC Fitting Type 13/31 with Ratchet Connector
Detail:
DuraMist Concentric Direct Connection (DC) Nebulizer
DuraMist DC Nebulizer 1mL/min – A13-1-DM04 is the most economical nebulizer for high-precision analyses involving samples digested in HF. Glass Expansion DC (Direct Connection) nebulizer has a UniFit sample connector which slides easily over the sample arm and an argon gas connector configured to connect directly to your ICP
What is Unique About the DuraMist DC Nebulizer?
The DuraMist DC nebulizer is concentric, meaning it uses a central capillary for liquid and an outer capillary for gas, drawing the liquid into the gas stream to create a fine mist. It is unique from other nebulizers used in ICP because its key features create advantages.
Key Features of DuraMist DC Nebulizer 0.4mL/min – A13-1-DM04:
- High Sensitivity and Precision: Delivers superior sensitivity and precision for diverse sample types.
- Material: Constructed from inert PEEK (Polyetheretherketone) material. As a result of PEEK, DuraMist dc is resistant to hydrofluoric acid (HF).
- Design: Features a smooth tip for outstanding tolerance to total dissolved solids (TDS).
- Direct Connect: Includes a DC (Direct Connection) gas fitting. This ensures a leak-free connection between the nebulizer and the ICP.
- UniFit Sample Connector: Features a UniFit sample connector for a zero-dead-volume connection.
- Compatibility: Can be used with peristaltic or syringe pumps for sample delivery.
Advantages Over Other ICP Nebulizers:
- High Sensitivity and Precision: Delivers superior sensitivity and precision for diverse sample types.
- High TDS Tolerance: Offers outstanding tolerance to total dissolved solids (TDS), up to 30%, making it suitable for challenging samples
- Cost-Effective: Provides a cost-effective solution for high-precision analyses
- Versatility: Suitable for a range of applications, including samples digested in HF.
