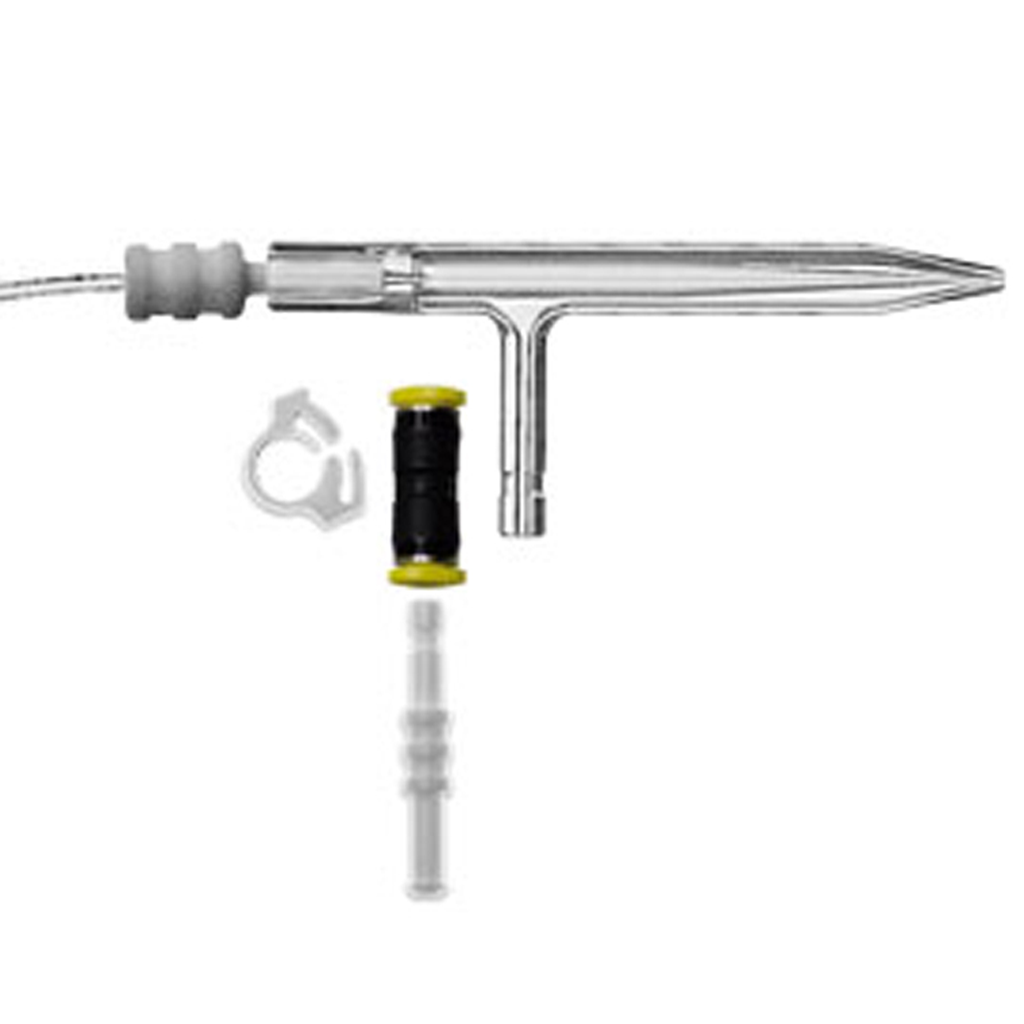

Conikal Nebulizer 1mL/min with EzyFit & EzyLok - AR30-1-FC1ES

Conikal Nebulizer 1mL/min EzyFit/EzyLok – AR30-1-FC1ES

$575.00

Gas Flow 1 L/min  |  Sample Uptake 1 ml/min



Includes 1500mm long tubing (1 piece)



How to install EzyLok connectors







Part No.: AR30-1-FC1ES Categories: ,

Description

Conikal Nebulizer 1mL/min EzyFit & EzyLok – AR30-1-FC1ES
P/N: AR30-1-FC1ES

Cross Reference(s)
046-00092-02

Instrument Compatibility:
Multiple Instruments

Includes:
– NFT-16-75 UniFit Connector with 0.75mm ID x 1.6mm OD x 1500mm long tubing (1 piece)
– EzyLok Kit

Detail:

The Conikal concentric nebulizer gives the most reproducible results for standard ICP analyses. It represents the choice nebulizer for high precision, routine aqueous and organic applications.

  • Material: Borosilicate glass
  • High physical reproducibility ~ 1%
  • TDS tolerance, typically up to 5%
  • High tolerance to particulates, typically up to 75um
  • Low RSD’s due to highly accurate construction
  • Standard available uptake: 1, 2 & 3mL/min

What Makes the Conikal EzyFit Nebulizer Unique?

  • What it is: A Conikal nebulizer is a specific type of concentric nebulizer, a device used to convert a liquid sample into a fine mist (aerosol) for analysis in ICP and ICP-OES instruments.
  • EzyFit: This refers to the type of connector used with the nebulizer, allowing for easy and secure connection of the nebulizer to the instrument’s sample introduction system.
  • Concentric Design: Concentric nebulizers have a central capillary for the liquid sample and an outer capillary for the carrier gas that draws the liquid into the gas stream, creating the mist.
  • Material: Conikal nebulizers are made of borosilicate glass, offering good chemical resistance and durability.

What are the Features of the Conikal EzyFit Nebulizer?

  • High Precision: Designed for high precision and reproducibility in sample introduction.
  • TDS Tolerance: Can handle moderate concentrations of dissolved salts.
  • Particulate Tolerance: Can tolerate some particulates in the sample.
  • Uptake Rates:  Available in different uptake rates, such as 1, 2, and 3 mL/min.
  • Applications: Used in various analytical applications, including aqueous and organic samples, and for routine analysis.
  • Instruments: Commonly used with Optima® 4×00/5×00/7×00 DV series, Optima® 8×00 and Avio® 200/500 ICP-OES series instruments.

Do you have questions about Conikal Nebulizer 1mL/min EzyFit/EzyLok – AR30-1-FC1ES? Call Precision Glassblowing to Learn More.

For common questions and support, visit our FAQs or Technical Information. And, there are several ways to contact Precision Glassblowing to speak with a real person. Click here to pick one that works for you.
