Description

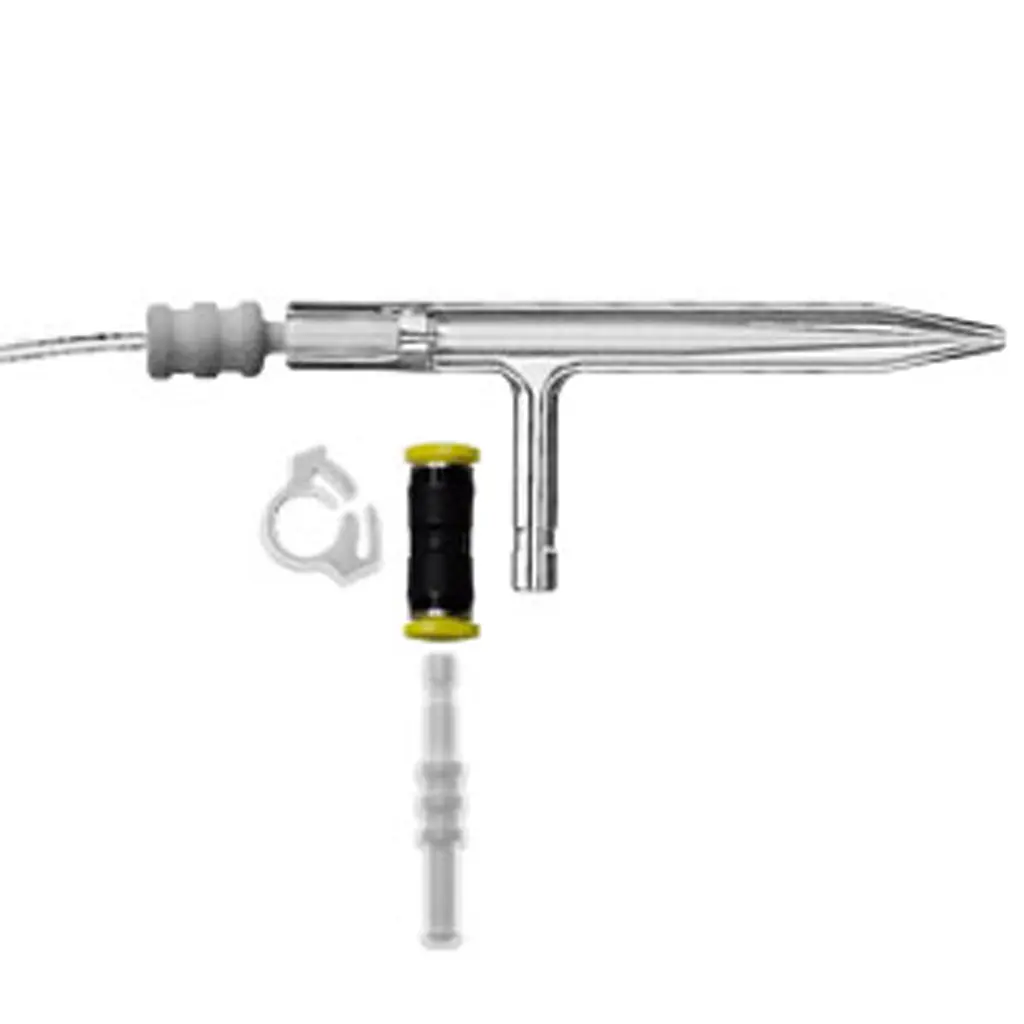

Conikal Nebulizer 2mL/min EzyFit/EzyLok – AR30-07-FC2E
Part Number:
AR30-07-FC2E
Cross Reference(s)
046-00092-02
Instrument Compatibility:
Multiple Instruments
Includes:
1 x Includes NFT-16-75 UniFit Connector with 0.75mm ID x 1.6mm OD x 700mm long tubing
1 x EzyLok Kit
Detail:
The Conikal concentric nebulizer gives the most reproducible results for standard ICP analyses. It represents the choice nebulizer for high precision, routine aqueous and organic applications.
- Material: Borosilicate glass
- High physical reproducibility ~ 1%
- TDS tolerance, typically up to 5%
- High tolerance to particulates, typically up to 75um
- Low RSD’s due to highly accurate construction
- Standard available uptake: 1, 2 & 3mL/min
What Makes the Conikal EzyFit Nebulizer Unique?
What it is: A Conikal nebulizer is a specific type of concentric nebulizer, a device used to convert a liquid sample into a fine mist (aerosol) for analysis in ICP and ICP-OES instruments.
EzyFit: This refers to the type of connector used with the nebulizer, allowing for easy and secure connection of the nebulizer to the instrument’s sample introduction system.
Concentric Design: Concentric nebulizers have a central capillary for the liquid sample and an outer capillary for the carrier gas that draws the liquid into the gas stream, creating the mist.
Material: Conikal nebulizers are made of borosilicate glass, offering good chemical resistance and durability.
