Description

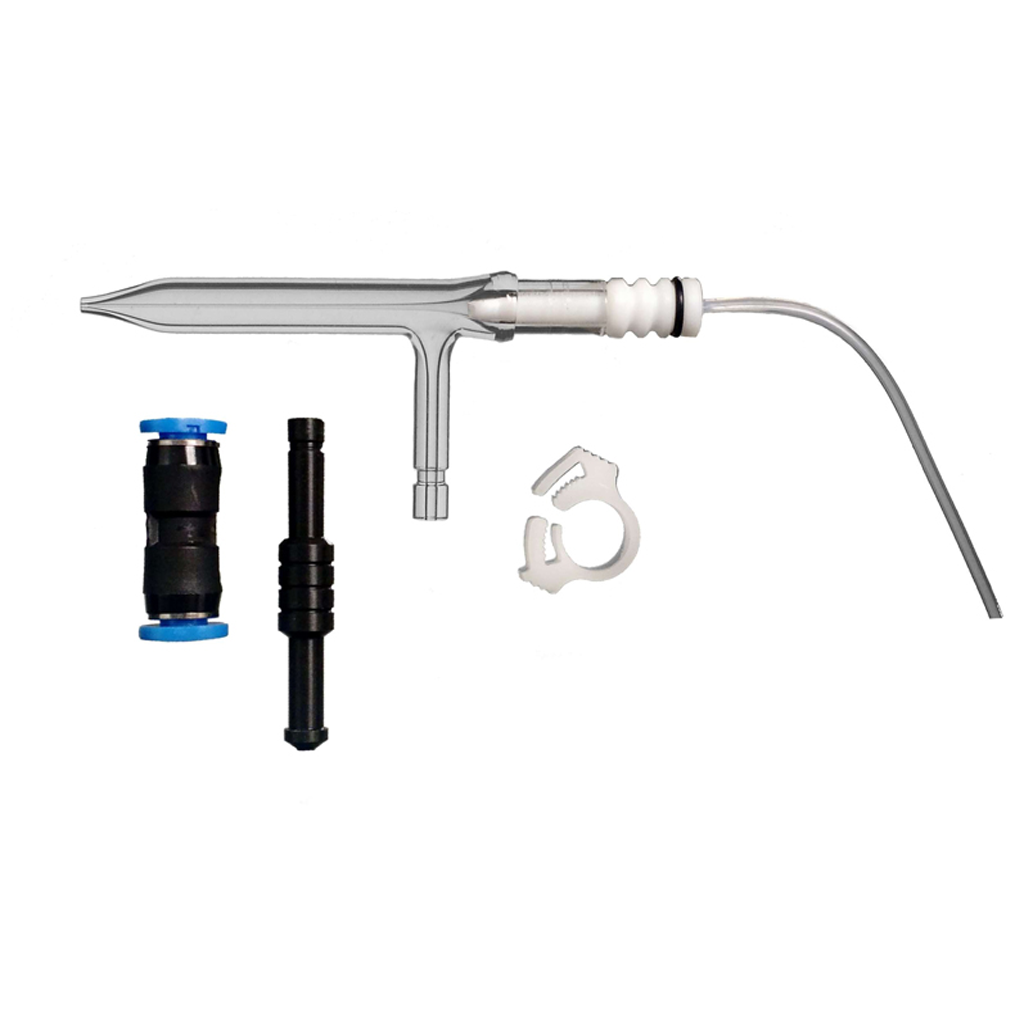

Concentric Nebulizer Aerosalt High-Solids 2mL/min 500-66QDAC
P/N: 500-66QDAC
Cross Reference(s)
PerkinElmer P/N: N0775340
Instrument Compatibility:
Multiple Instruments
Detail:
Pyrex, Aerosalt (High-Solids) Nebulizer, 1 L/min Ar, 30 psi, 2 mL/min, Quick Disconnect, Argon Connect
Concentric Nebulizer Aerosalt High-Solids 2mL/min 500-66QDAC
A concentric nebulizer is a common nebulizer for inductively coupled plasma (ICP) mass spectrometry (ICP-MS) and ICP-OES. It’s called concentric because the sample line is concentric within the gas line.
The nebulizer has a central capillary containing liquid and an outer capillary containing gas. As a result of its structure, the gas pulls the liquid into the gas stream, breaking it into a fine mist as it moves through. This process uses the Venturi Effect, which occurs when a fluid’s pressure decreases as it speeds up while moving through a constricted area.
Application Determines Best Material
Concentric nebulizers are often recommended for ICP-MS because they produce a fine aerosol with a narrow size range at low flow rates. In fact, they can be made from glass, quartz, or PFA, depending on the application:
- Glass: For routine applications.
- Quartz: Recommended for trace analysis of aqueous or organic samples.
- PFA: Recommended for semi-conductor process chemicals, as it’s inert to HF and self-aspirates.
One potential drawback of concentric nebulizers is that they can clog when running samples with particulates. However, you can avoid issues like this with daily cleanings, especially during heavy use.
Do you have questions about the Concentric Nebulizer Aerosalt High-Solids 2mL/min 500-66QDAC? Call Precision Glassblowing to learn more.
