Description

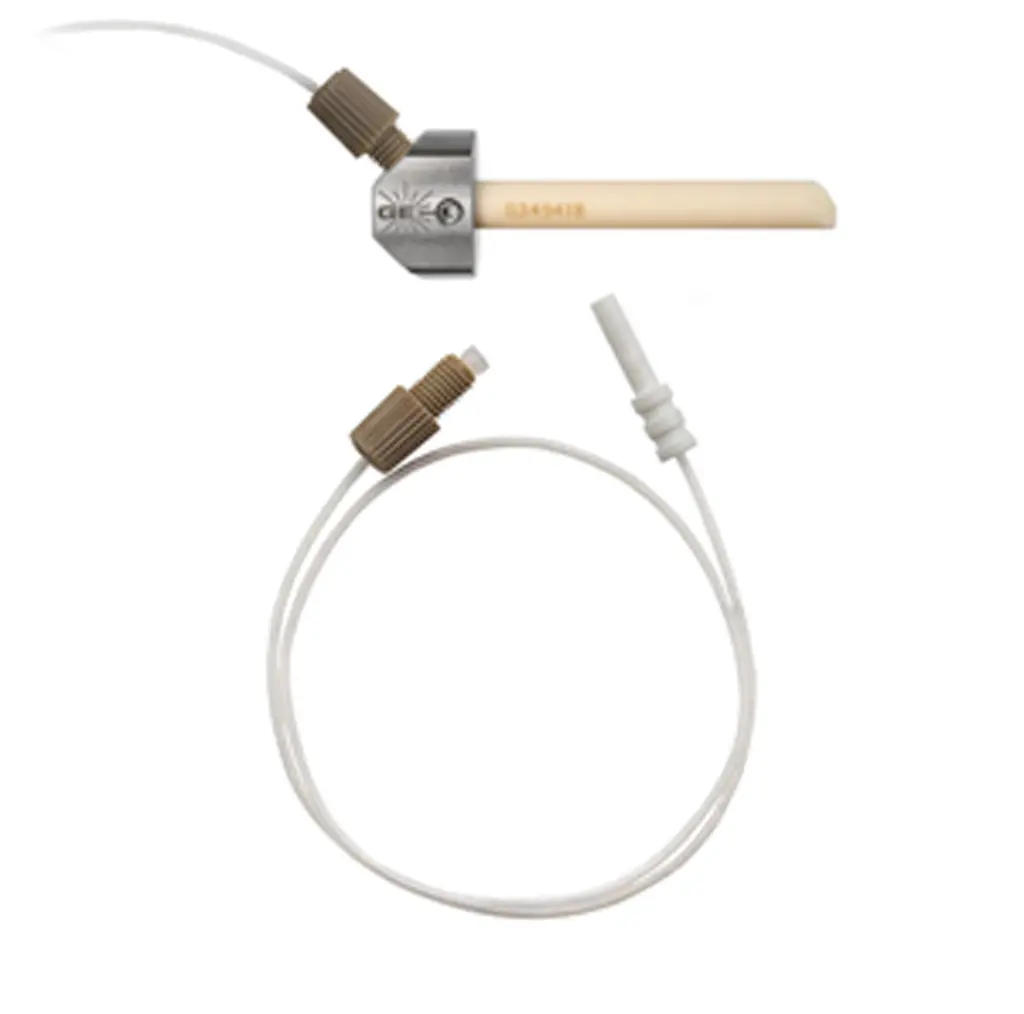

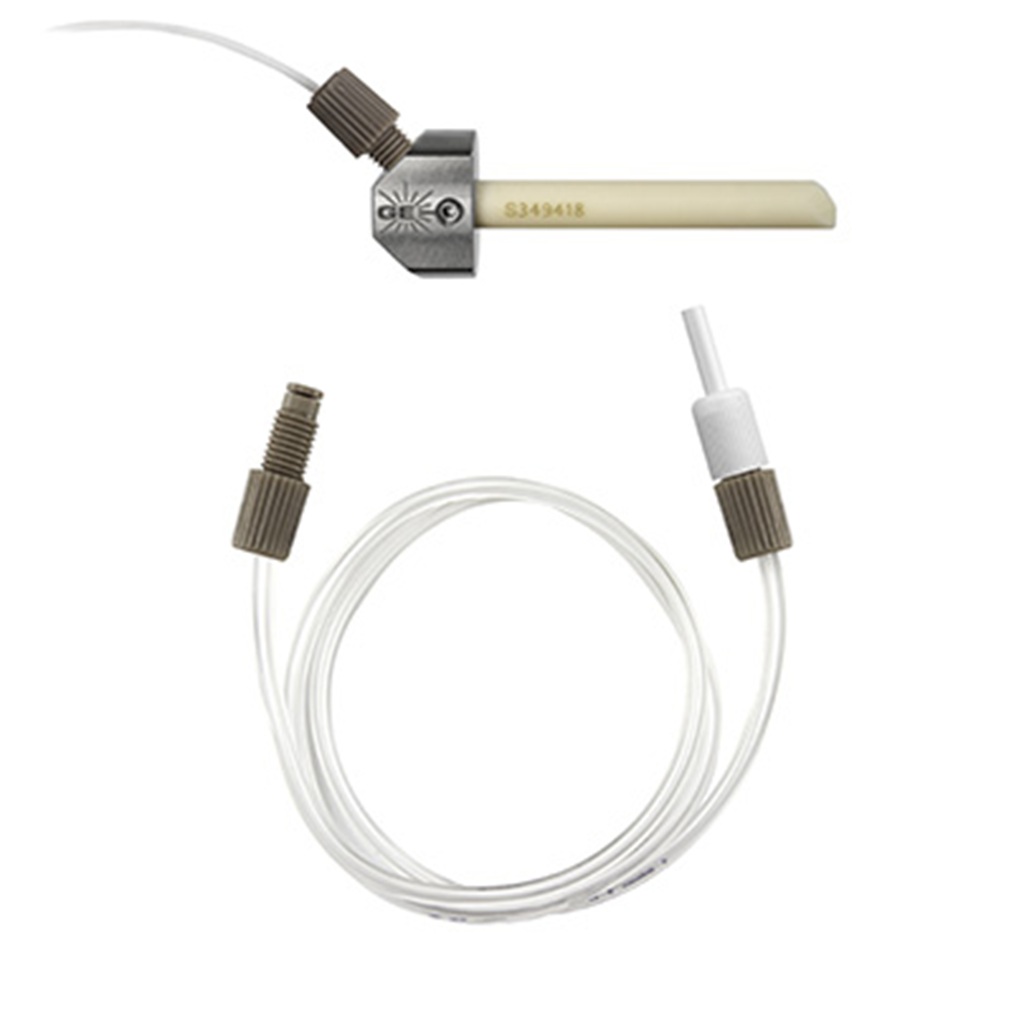

VeeSpray Ceramic DC Nebulizer – A31-07-CV6
P/N: A31-07-CV6
Cross Reference(s)
None Available
Instrument Compatibility:
Multiple Instruments
Includes:
- Includes Sample Tubing 0.75mm ID x 1/16 OD (750mm length)
- Includes Ratchet Connector and Ferrule for VeeSpray Nebulizer (1 of each)
Detail:
VeeSpray Ceramic Direct Connect (DC) Nebulizer
VeeSpray Ceramic DC Nebulizer is a specialized nebulizer for use in inductively coupled plasma (ICP) instruments, particularly for samples containing high levels of dissolved solids or particulates. In addition, it’s suitable for samples requiring HF digestion. It’s made of durable alumina ceramic, making it resistant to abrasion and able to handle tough matrices without clogging. This robustness makes it particularly important for analyzing samples like geological materials, where particulates and high dissolved solids are common.
What are the Benefits of the VeeSpray Ceramic DC Nebulizer?
The DC nebulizer is our latest design. It has a UniFit sample connector that slides easily over the sample arm and an argon connector configured to connect directly to your ICP. The benefits of the DC nebulizer are:
- Inert metal-free argon connector.
- Instrument-specific Direct Connect flexible argon line.
- Reliable ratchet fitting ensures leak-free gas connection.
In addition to these unique benefits, the DC nebulizer shares the following benefits with the U-Series nebulizer:
- Resists blockage: The sample channel is uniform from the entry point to the tip, so there is nowhere for particulates to be trapped.
- Fast washout: Since there is nowhere to trap the sample, we achieve the fastest possible washout and highest sample throughput.
- Simple to use: Our proprietary UniFit connector slides easily over the sample arm while creating an excellent seal.
- Full-length VitriCone construction: With the VitriCone design, the sample channel is built from heavy glass capillary machined to very high tolerances.
Why is the VeeSpray Ceramic DC Nebulizer Important in ICP?
- High Particulate Tolerance: The VeeSpray’s non-concentric, V-groove design and robust alumina ceramic construction allow it to handle large particulates that would clog other nebulizers, according to Glass Expansion.
- HF Tolerance: It’s resistant to HF (hydrofluoric acid), a common reagent used in digestion processes.
- Robustness: The alumina ceramic material makes it extremely durable and abrasion-resistant.
- Reproducibility: It provides consistent and reproducible performance even with challenging samples.
- Virtually Unblockable: With a design to minimize clogging, the VeeSpray Ceramic DC Nebulizer is ideal for labs handling samples with high dissolved solids.
Do you have questions about VeeSpray Ceramic DC Nebulizer – A21-07-CV6? Call Precision Glassblowing to Learn More.
Do you have questions? Visit our FAQs or Technical Information. And, there are several ways to contact Precision Glassblowing. Click here to pick one that works for you.
