Twister Spray Chamber with Helix CT – 20-809-4417HE

$885

Description

Twister Spray Chamber with Helix CT – 20-809-4417HE

Part Number:
20-809-4417HE

Cross Reference(s)
None Available

Instrument Compatibility:
PerkinElmer NexION 1000, 2000 ICP-MS

Includes:
1 x Helix CT Locking Screw with Seal
1  UFT-16-75 UniFit Connector

Detail:

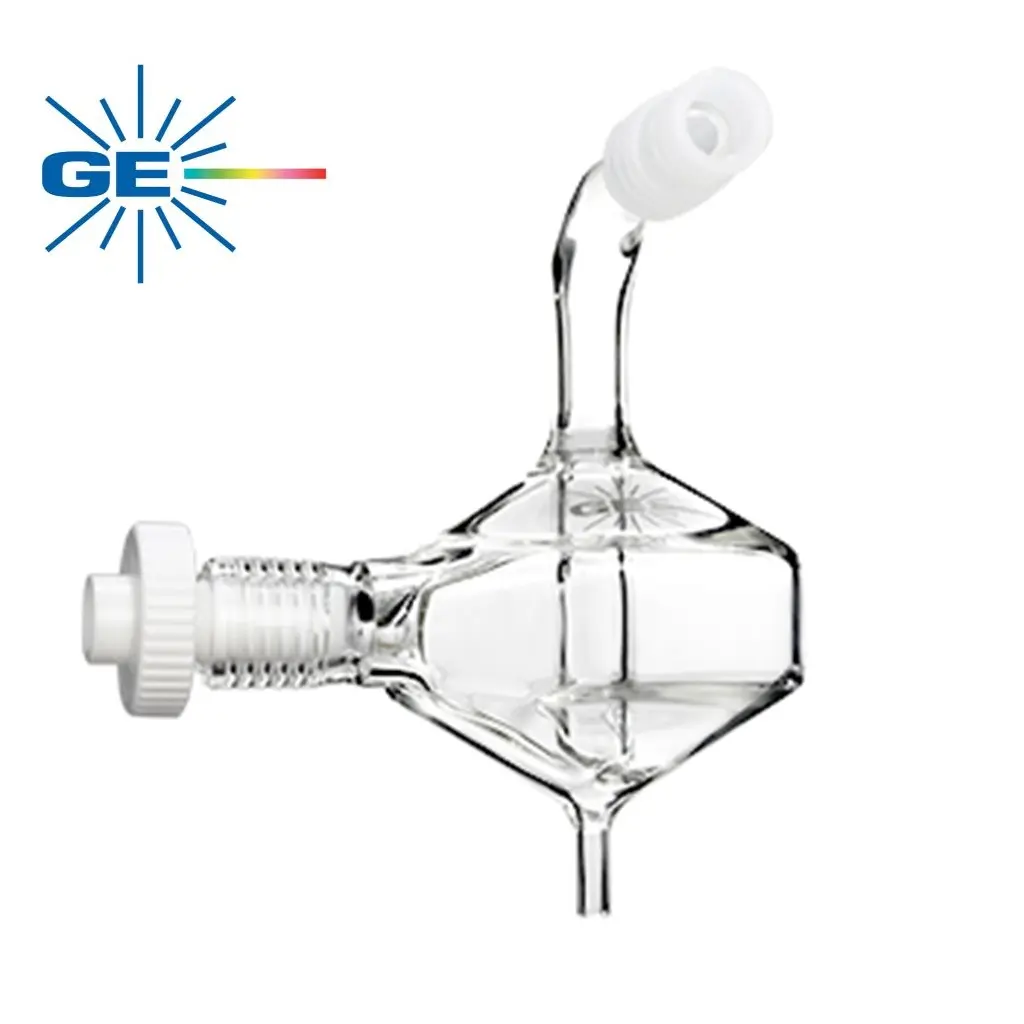

Pyrex, Twister Spray Chamber with Helix CT , 50ml cyclonic

Spray Chamber Highlights

Function

By filtering out larger droplets, the spray chamber helps optimize the sample introduction process. Subsequently, this leads to more accurate and reliable results in elemental analysis using ICP techniques such as ICP-OES and ICP-MS.

Design Features

Different types of spray chambers exist, with popular designs including cyclonic chambers which use a swirling motion to separate large droplets from the aerosol.

Impact on Analysis

A well-chosen and properly maintained spray chamber can significantly influence the sensitivity, precision, and signal stability of an ICP analysis.

Spray Chambers and Design Considerations

Function of a Spray Chamber

In all ICP techniques, the spray chamber’s primary role is to separate large droplets from a sample aerosol, ensuring only fine droplets reach the plasma for analysis.

Importance of Sensitivity

For ICP-MS, which has a much higher sensitivity than ICP-OES, achieving a very fine aerosol is crucial to maximize signal and minimize background noise.

Design Variations

Depending on the specific needs of the analysis, different spray chamber designs like cyclonic chambers might be preferred to optimize droplet size distribution and reduce matrix effects.
