Description

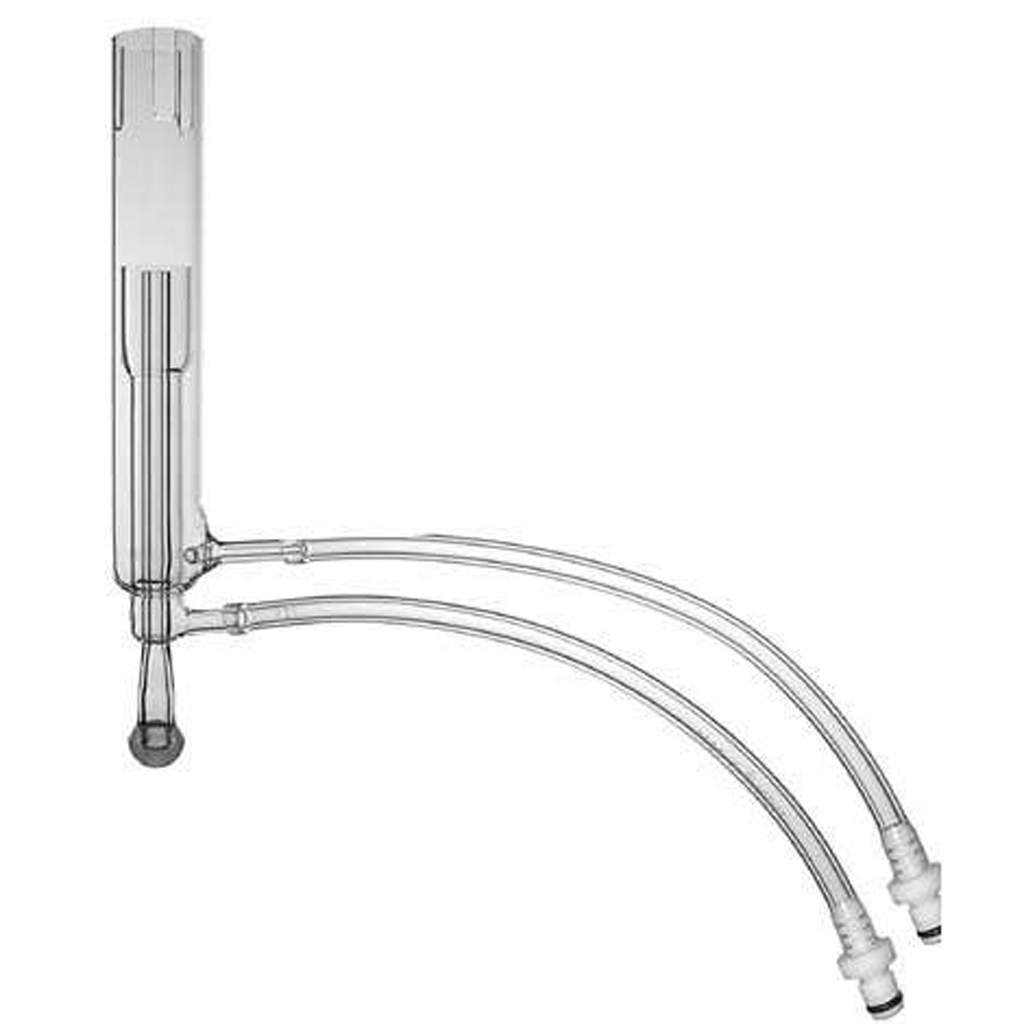

Torch Dual View 2.5mm Inj. w/Fittings 550-65F
Part Number:
PG550-65F
Cross Reference(s)
OEM: 120-00309-2
Instrument Compatibility:
Teledyne / Leeman Labs Prodigy Series Dual View (DV)
Teledyne / Leeman Labs Profile Series Dual View (DV)
Torch Detail:
Quartz, Aqueous, Dual View, 2.5mm (straight bore) Injector, 3-Slot.
Fittings and Tubing Included
Purchase Additional Fittings and Tubing PG550-23
What Makes the Torch Work?
Plasma forms at the end of three concentric quartz tubes, collectively known as the torch. Argon gas flows through all three tubes.
- The inner tube is the injector and contains the sample aerosol in a stream of argon that delivers the sample to the plasma.
- Concentric to this tube is another tube of argon. This is the auxiliary gas that forms the plasma.
- The outer argon tube is a cooling layer to prevent the torch from melting.
- The far end of the torch has a copper induction coil (or ‘load coil’) surrounding it that connects to a radio frequency (RF) generator.
Features of Torch Dual View 2.5mm Inj. w/Fittings 550-65F.
Single Piece Torch
Single-piece inductively coupled plasma (ICP) torches have narrow bore injectors (1.0 mm or 1.5 mm) designed to improve plasma stability and reduce plasma loading when used with organic solvents. They are the least expensive type of torch to buy initially, but they are also the least versatile and must be replaced entirely if any component is damaged. Single-piece torches can also be expensive consumables that require regular maintenance and replacement, especially when used with aggressive sample matrices like hydrofluoric acid, organic solvents, and high total dissolved solids.
Aqueous Torch
Water torches pass an electric current through water and electrolytes stimulating a reaction that turns it into hydrogen and oxygen fuel. When choosing an aqueous torch, you may consider Light output: — the intensity of the light emitted on its highest setting with fresh batteries. In addition, consider the battery type, run time, size, and weight.
