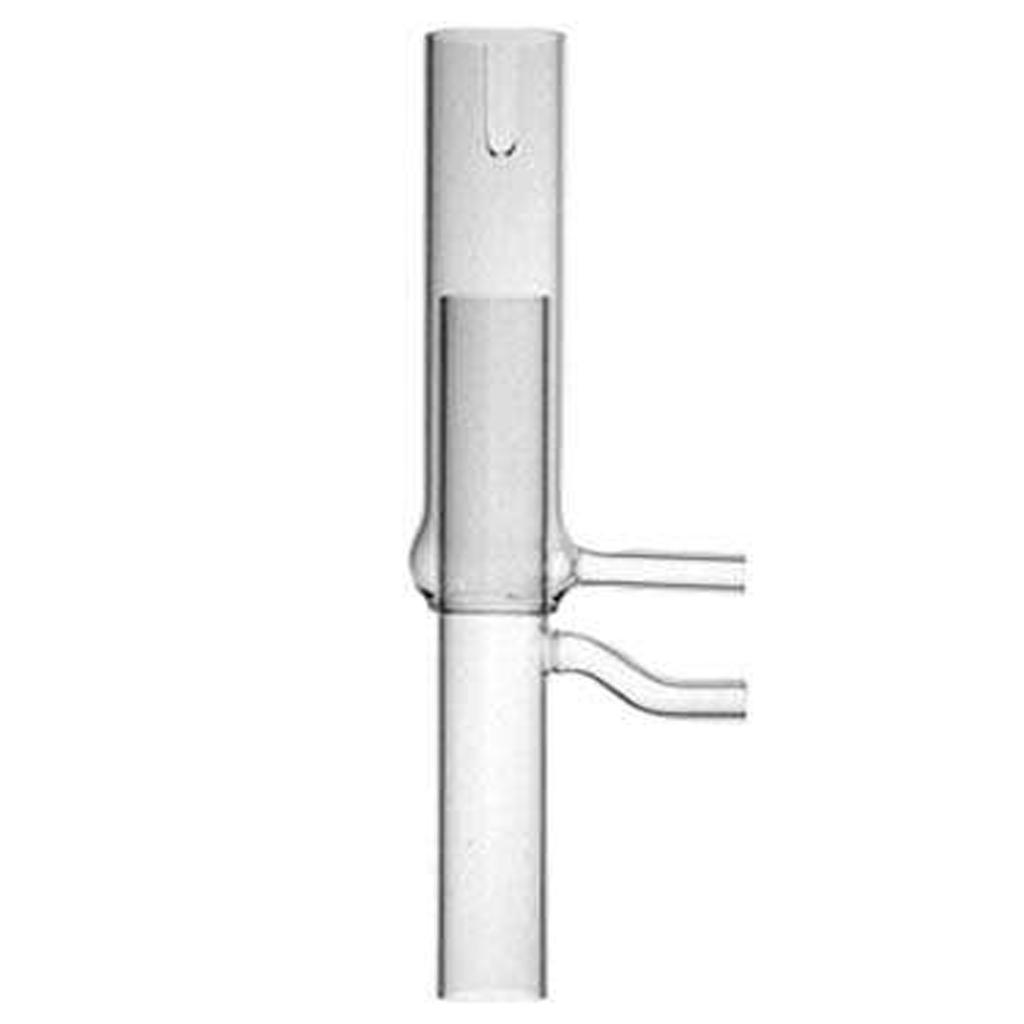

Torch Body Radial 1 Slot 310-04

$264.22

Torch Body, Radial, exact match OEM replacement for PerkinElmer Optima 3X00 Radial



Description

Torch Body Radial 1 Slot 310-04
P/N: 310-04

Cross Reference(s)
Glass Expansion: 30-807-0022
Meinhard: ML131004
PerkinElmer: N0690568

Instrument Compatibility:
PerkinElmer Optima 3X00 Radial

Torch Detail:

This is an exact match OEM replacement quartz torch for PerkinElmer Optima 3X00 Radial series ICP-OES instruments.

This torch has a single viewing slot and is also available in a Ware Metals version (Precision Glassblowing P/N: 310-04W) for organics analysis. The torch does not include an injector or injector supports. Precision Glassblowing offers plastic injector support adapters and injectors of various sizes in both quartz and alumina.

What is the Role of the ICP Torch?

A plasma is an ionized gas, consisting of positively charged ions and free (unbound) electrons. The role of the plasma (ICP) in ICP-MS is to ionize the sample. In contrast to so-called ‘soft’ ionization sources in other forms of mass spectrometry, the ICP is a ‘hard’ ionization technique because it completely atomizes most molecules in the sample.

ICP-MS instruments use an argon plasma, although helium plasma is also an option. Although there are several advantages to using helium, argon is the gas of choice since the cost of helium is prohibitive.

What Makes the Torch Work?

Plasma forms at the end of three concentric quartz tubes, collectively known as the torch. Argon gas flows through all three tubes.

  • The inner tube is the injector and contains the sample aerosol in a stream of argon that delivers the sample to the plasma.
  • Concentric to this tube is another tube of argon. This is the auxiliary gas that forms the plasma.
  • The outer argon tube is a cooling layer to prevent the torch from melting.
  • The far end of the torch has a copper induction coil (or ‘load coil’) surrounding it that connects to a radio frequency (RF) generator.

How the ICP Torch Ionizes a Sample

The RF generator supplies power to the load coil, creating a high-frequency alternating current. This, in turn, induces a time-varying electromagnetic field in the torch. As a result, with argon gas flowing through the torch, the application of a high-voltage discharge (called a Tesla spark) ionizes a fraction of the argon atoms generating ions and electrons.

The electromagnetic field in the torch then acts on the ions and electrons. As a result, they accelerate and collide with other argon atoms. If these collisions impart enough energy, additional atoms ionize creating electrons and ions that propagate the cascade.

As a result, the movement of electrons and ions in the torch generates tremendous heat. The result is an ICP, which reaches a temperature of up to 10,000 Kelvin (hotter than the surface of the sun).

What Is PFA Inert?

PFA is frequently employed as an inert substance in sample equipment on geochemical or environmental analytical chemistry field sites to assist in avoiding trace amounts of metallic ion contamination.

Features of Torch Body Radial 1 Slot 310-04.

Demountable Torch

The D-Torch is a robust and higher-performing alternative to both a single-piece and a semi-demountable quartz torch. The demountable design offers several benefits, including ease of maintenance, flexibility in configuration, and the ability to customize the torch setup for specific analytical requirements. Additionally, it allows for thorough cleaning and removal of any sample residues or contaminants that may accumulate during analysis.

Single-Slot Torch

A single-slot ICP torch is a standard torch for aqueous solutions in ICP-OES (optical emission spectrometry) instruments. ICP-OES is a technique that uses plasma and a spectrometer to determine the composition of elements in samples, usually dissolved in water.

Single-slot torches are made of one-piece quartz tubing for plasma and auxiliary gas flow. They can be demountable and require regular maintenance and replacement, especially when working with aggressive samples like hydrofluoric acid, organic solvents, or samples with high total dissolved solids.
