Description

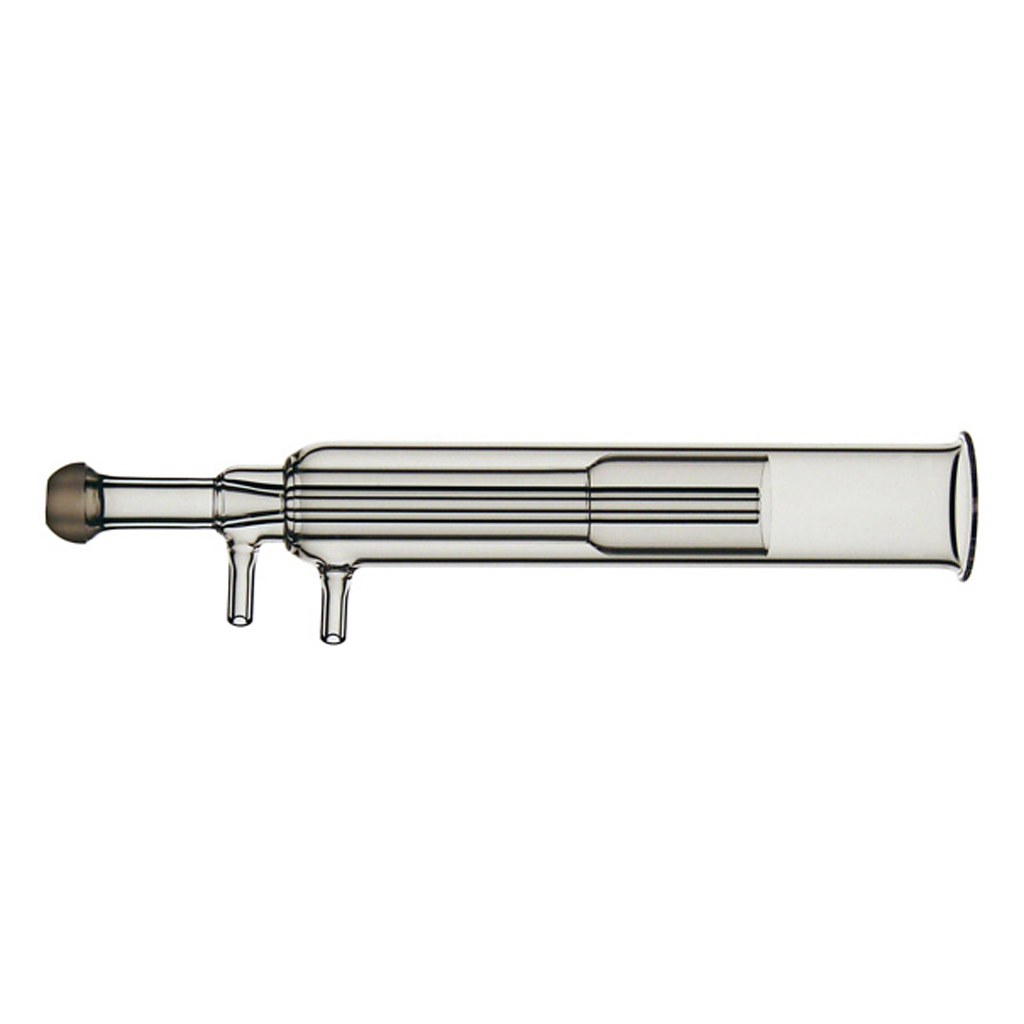

Torch Axial EOP 1.8mm Flared End 750-41
Part Number:
PG750-41
Cross Reference(s)
Spectro: 48105052A
Instrument Compatibility:
Spectro Modula, CIROS, Genesis, ARCOS
Torch Detail:
EOP, Quartz, Axial, Flared End Torch, 1.8mm ID injector
No Gas Fitting Adapters for Spectro Included
Purchase Gas Fittings Adapter for Spectro PG750-55
What Makes the Torch Work?
Plasma forms at the end of three concentric quartz tubes, collectively known as the torch. Argon gas flows through all three tubes.
- The inner tube is the injector and contains the sample aerosol in a stream of argon that delivers the sample to the plasma.
- Concentric to this tube is another tube of argon. This is the auxiliary gas that forms the plasma.
- The outer argon tube is a cooling layer to prevent the torch from melting.
- The far end of the torch has a copper induction coil (or ‘load coil’) surrounding it that connects to a radio frequency (RF) generator.
Features of Torch EOP 1.8mm Flared End 750-41.
Single Piece Torch
Single-piece inductively coupled plasma (ICP) torches have narrow bore injectors (1.0 mm or 1.5 mm) designed to improve plasma stability and reduce plasma loading when used with organic solvents. They are the least expensive type of torch to buy initially, but they are also the least versatile and must be replaced entirely if any component is damaged. Single-piece torches can also be expensive consumables that require regular maintenance and replacement, especially when used with aggressive sample matrices like hydrofluoric acid, organic solvents, and high total dissolved
