Description

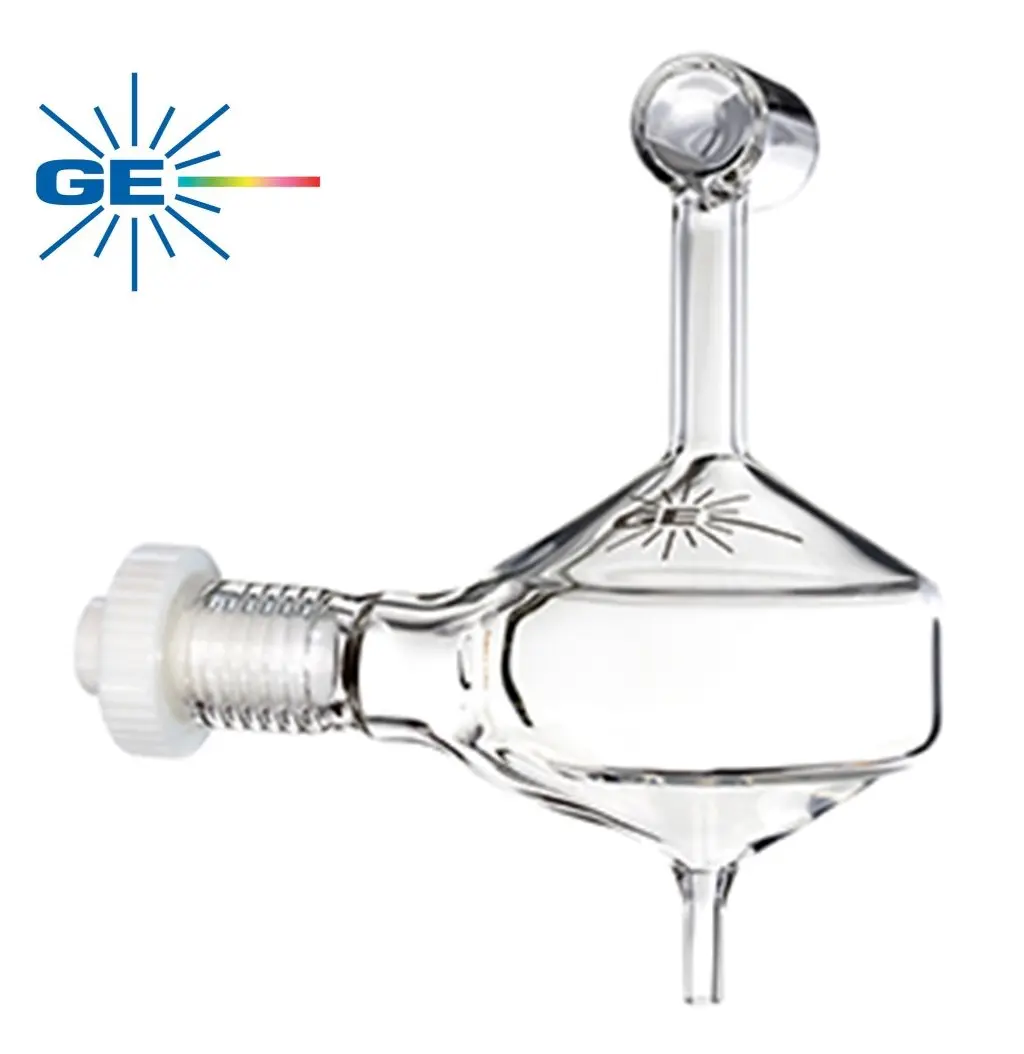

Spray Chamber Tracey – Pyrex – Helix CT – 50mL – 20-809-0434HE
P/N: 20-809-0434HE
Cross Reference(s)
PerkinElmer P/N: N077-5351
Instrument Compatibility:
PerkinElmer Optima 2000/4000/5000/7000 DV Series
Detail:
Pyrex, Tracey Spray Chamber with Helix CT, 50mL Cyclonic.
Spray Chamber Tracey – Pyrex – Helix CT – 50mL – 20-809-0434HE
An Inductively Coupled Plasma (ICP) spray chamber is a critical component within an Inductively Coupled Plasma (ICP) system. It functions to remove large droplets from the aerosol generated by a nebulizer, thereby ensuring only a fine mist reaches the plasma for analysis. As a result, this improves the precision and stability of the signal produced by the ICP instrument. Essentially, it acts as a filter for the sample aerosol before it enters the plasma torch.
Spray Chamber Highlights
Here are a few key points about ICP spray chambers:
Function
By filtering out larger droplets, the spray chamber helps optimize the sample introduction process. Subsequently, this leads to more accurate and reliable results in elemental analysis using ICP techniques such as ICP-OES and ICP-MS.
Design Features
Different types of spray chambers exist, with popular designs including cyclonic chambers which use a swirling motion to separate large droplets from the aerosol.
Impact on Analysis
A well-chosen and properly maintained spray chamber can significantly influence the sensitivity, precision, and signal stability of an ICP analysis.
Spray Chambers and Design Considerations
While the fundamental benefits of an ICP spray chamber, like reducing large droplets and improving signal stability, are generally the same for both ICP-MS and ICP-OES, the specific design considerations might differ slightly due to the different sensitivity levels of each technique. For example, ICP-MS often requires a more optimized spray chamber for achieving the best detection limits. However, the core function of the spray chamber remains consistent across all ICP applications.
Keep these concepts in mind when determining your spray chamber needs:
Function of a Spray Chamber
In all ICP techniques, the spray chamber’s primary role is to separate large droplets from a sample aerosol, ensuring only fine droplets reach the plasma for analysis.
Importance of Sensitivity
For ICP-MS, which has a much higher sensitivity than ICP-OES, achieving a very fine aerosol is crucial to maximize signal and minimize background noise.
Design Variations
Depending on the specific needs of the analysis, different spray chamber designs like cyclonic chambers might be preferred to optimize droplet size distribution and reduce matrix effects.
