Spray Chamber Tracey Pyrex No Baffle Helix CT – 20-808-8882HE

$610

Agilent / Thermo / ARL
Analytik Jena PQ9X00 / PQ9200 Series



Helix CT Assembly – Instructional Video

ICP Spray Chambers – Instructional Video

Description

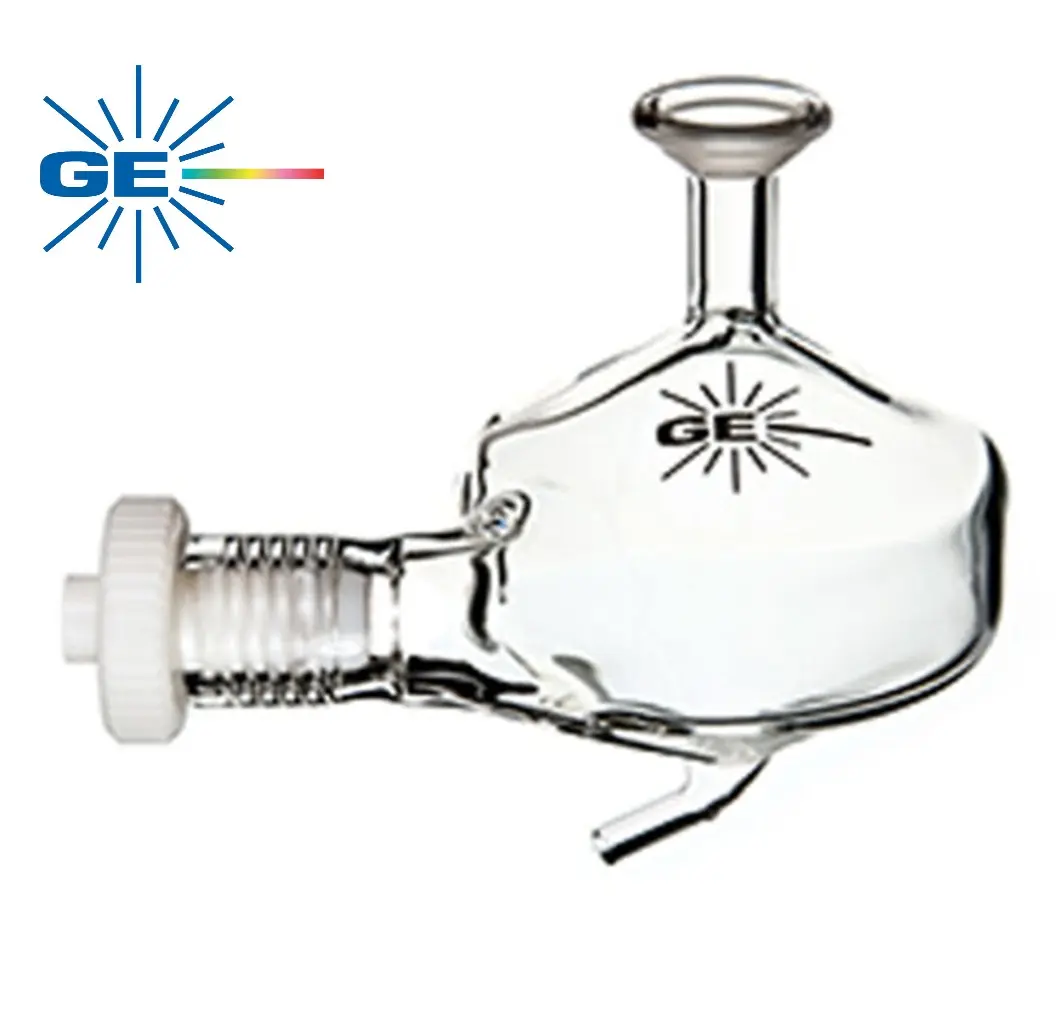

Spray Chamber Tracey Pyrex No Baffle Helix CT – 20-808-8882HE

Part Number:
20-808-8882HE

Cross Reference(s)
Agilent G8010-60271
HORIBA /JY  33.010.014 / 47.929.056
Analytik Jena 13-410-407

Instrument Compatibility:
Agilent / Thermo / ARL
Analytik Jena PQ9X00 / PQ9200 Series

Detail:
Pyrex, Tracey Spray Chamber with Helix CT, 50ml cyclonic, (for semi-demountable torch)

Includes:
1 x UniFit Connectors

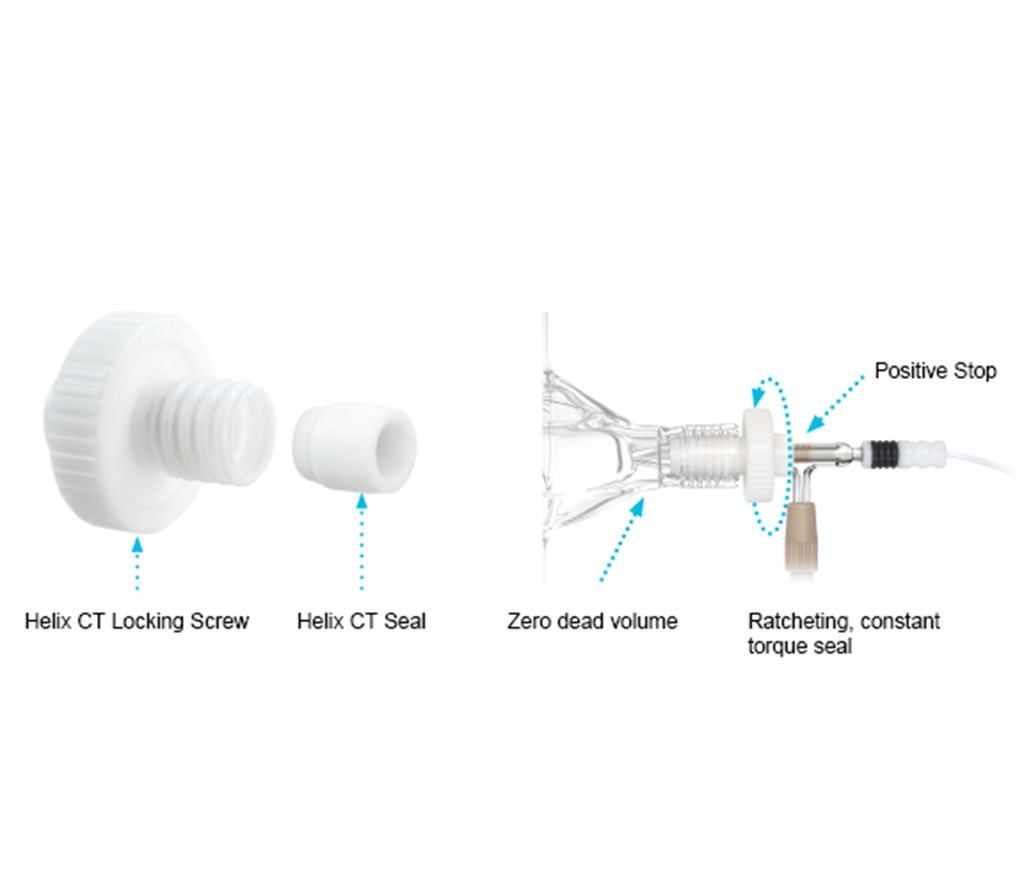

1 x Includes Helix CT locking screw with seal

Spray Chamber Highlights

Function

By filtering out larger droplets, the spray chamber helps optimize the sample introduction process. Subsequently, this leads to more accurate and reliable results in elemental analysis using ICP techniques such as ICP-OES and ICP-MS.

Design Features

Different types of spray chambers exist, with popular designs including cyclonic chambers which use a swirling motion to separate large droplets from the aerosol.

Impact on Analysis

A well-chosen and properly maintained spray chamber can significantly influence the sensitivity, precision, and signal stability of an ICP analysis.

Spray Chambers and Design Considerations

Function of a Spray Chamber

In all ICP techniques, the spray chamber’s primary role is to separate large droplets from a sample aerosol, ensuring only fine droplets reach the plasma for analysis.

Importance of Sensitivity

For ICP-MS, which has a much higher sensitivity than ICP-OES, achieving a very fine aerosol is crucial to maximize signal and minimize background noise.

Design Variations

Depending on the specific needs of the analysis, different spray chamber designs like cyclonic chambers might be preferred to optimize droplet size distribution and reduce matrix effects.
