Description

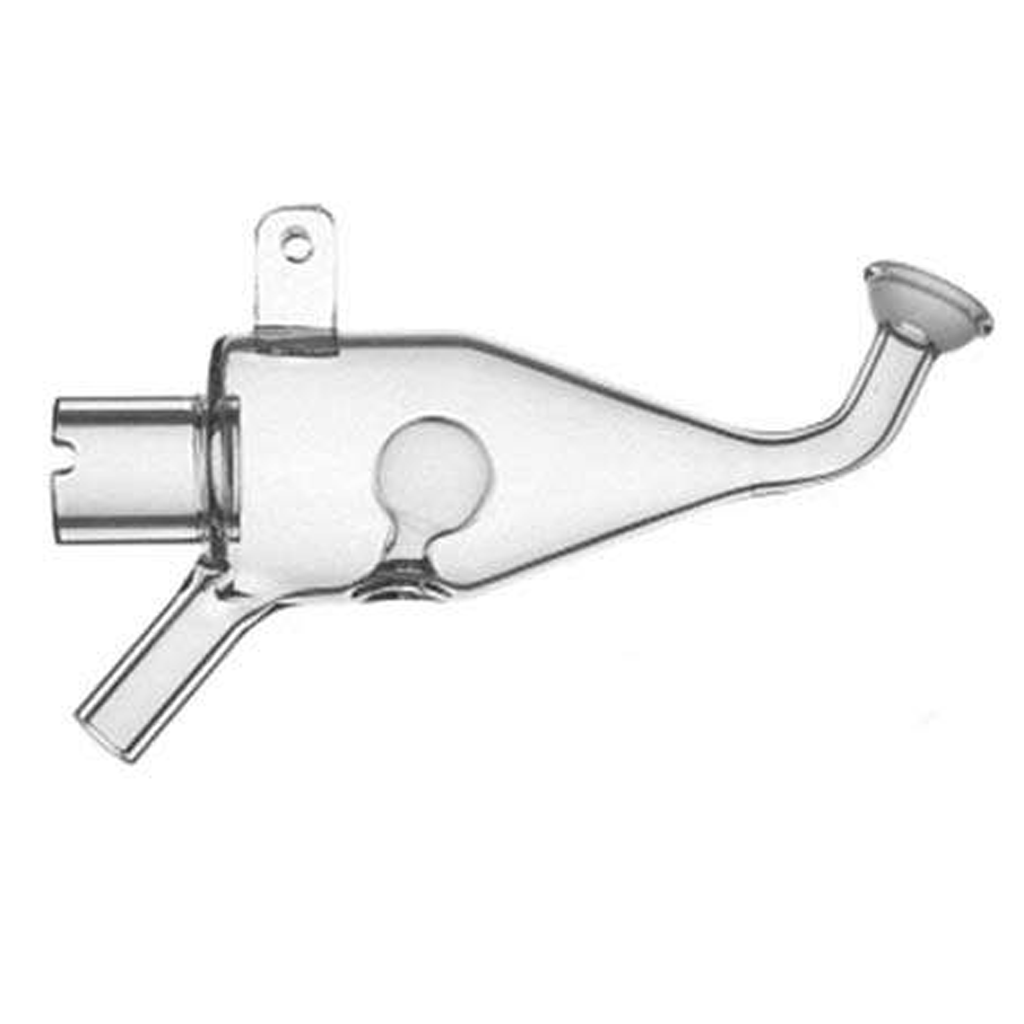

Spray Chamber Pyrex Conical MDSN 110-34
P/N: 110-34
Cross Reference(s)
ARL: 173142-0003
Instrument Compatibility:
ARL 3400/3500 Accuris Mini
Detail:
Pyrex, Conical Spray Chamber for Babington MDSN
Conical Spray Chamber: Precision in ICP Analysis
A spray chamber is crucial in ICP systems, ensuring precise and consistent sample introduction. By creating a fine aerosol mist, it enhances the efficiency of the ICP process. As a result, the design promotes better separation of larger droplets, improving signal stability and accuracy. This precision is vital for achieving reliable analytical results, making the spray chamber indispensable in ICP analysis.
Conical and cyclonic spray chambers are both designed to remove large droplets from a nebulizer’s spray. In fact, both use gravity to divert larger droplets to a drain, but cyclonic spray chambers also use centrifugal force to help.
Spray Chamber Design and Functionality
There are three primary designs for spray chambers and in all three designs, gravity is used to remove the larger drops from the transport gas stream and divert them to the drain. The conical spray chamber uses an impact bead to break up larger droplets. Subsequently, the chamber design also helps to minimize sample loss and reduces memory effects, contributing to consistent and reproducible results.
Total transport efficiency is typically below 5 % with the conical spray chamber. In the cyclonic spray chamber, this action is assisted by centrifugal forces.
Industry Utilization of Conical Spray Chambers
Conical spray chambers are widely used across various industries, including environmental monitoring, pharmaceuticals, and food safety. While the cyclonic spray chamber is the most popular overall, the conical spray chamber is often used in food safety, the pharmaceutical industry, and environmental monitoring.
- In food safety, conical spray chambers help analyze trace elements and contaminants in food products. For that reason, their precision and efficiency are critical for ensuring food products meet safety standards.
- In addition, the pharmaceutical industry relies on conical spray chambers for their robustness and reliability in trace metal analysis.
- In environmental monitoring, conical spray chambers handle diverse sample matrices. That is why they must ensure a precise and consistent sample introduction, crucial for detecting trace elements in environmental samples like water, soil, and air.
Selecting a Spray Chamber
These chambers are essential for ensuring the purity and safety of products. Therefore, their design minimizes sample loss and memory effects, which is vital for maintaining the integrity of the analysis. The ability to handle aggressive matrices and provide consistent results makes them a preferred choice in this industry.
Of course, when selecting a spray chamber, factors such as sample type, required sensitivity, and compatibility with the ICP system should be considered. Customizable options are available to meet specific analytical needs, ensuring optimal performance for diverse applications.
Optimal Materials for Conical Spray Chambers
The choice of materials for conical spray chambers is critical for their durability and performance. Common materials include borosilicate glass, quartz, and inert polymers.
- Borosilicate glass offers excellent chemical resistance and is suitable for most applications.
- Quartz provides superior performance for high-temperature analyses and is ideal for samples with aggressive matrices.
- Inert polymers such as PFA for highly corrosive samples ensure long-term reliability and minimal contamination.
Selecting the right material ensures the spray chamber’s longevity and consistent performance.
