Description

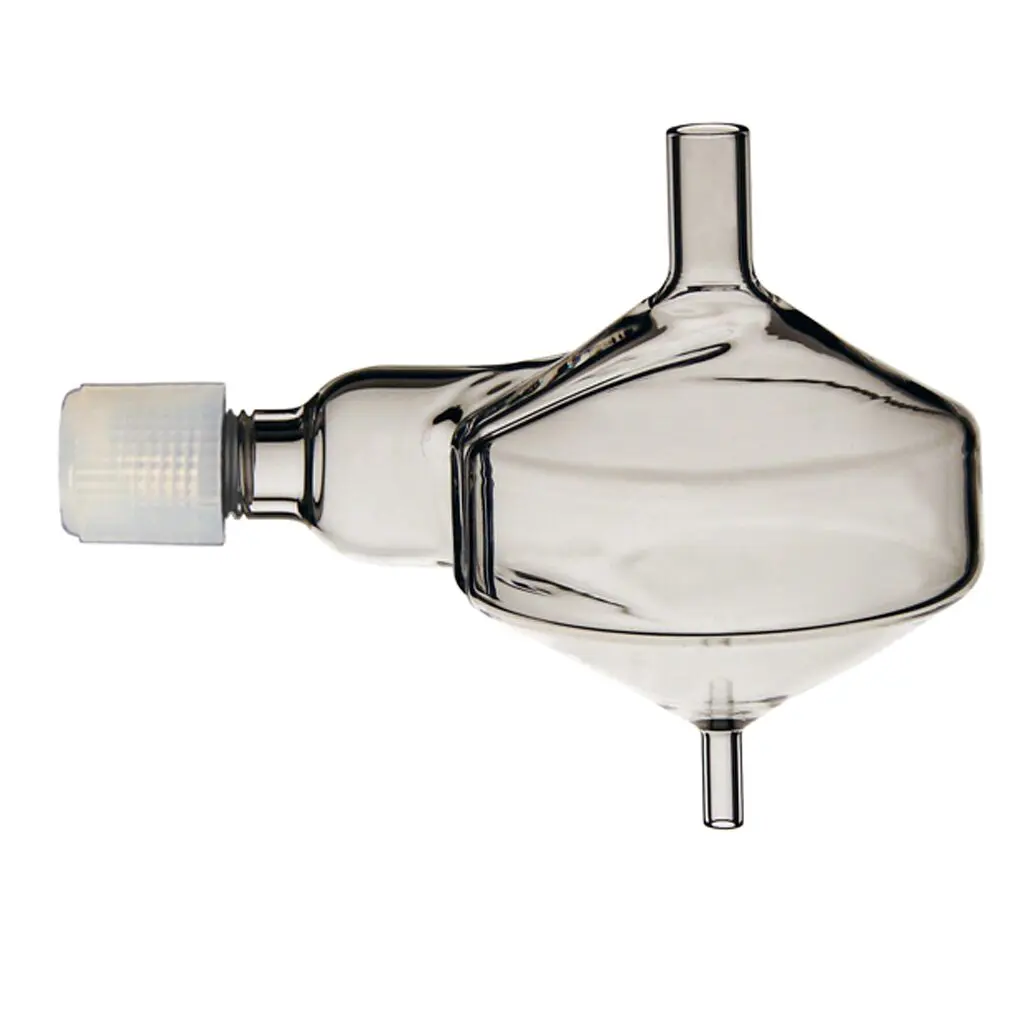

Pyrex Spray Chamber Cyclonic O-Ring Free 800-21-LSI
Part Number:
PG800-21-LSI
Cross Reference(s)
Glass Expansion: 20-809-0600
Meinhard: ML180021
Varian: 2010081700
Instrument Compatibility:
Agilent / Varian 700-ES Series
Agilent / Varian Liberty and Vista Series
Agilent / Varian Ultramass-700 Series
Detail:
Cyclonic, 8mm Top, 4mm (Pump) Drain
Threaded O-ring free Lock Seal Inlet (LSI), includes Compression Ferrule Cap PG-LSI-CAP
Cyclonic Spray Chamber: Precision in ICP Analysis
A cyclonic spray chamber is a key component in Inductively Coupled Plasma (ICP) systems, known for its excellence in sample introduction. It employs a cyclonic action to separate larger droplets from the aerosol, directing them to waste, while finer droplets are delivered to the plasma.
This action ensures more sensitivity and consistency in ICP measurements. Precision Glassblowing’s cyclonic chambers, including their advanced models, meet various analytical demands.
Spray Chamber Design and Functionality
The design of cyclonic spray chambers focuses on maximizing transport efficiency and precision. Precision Glassblowing’s range includes single-pass and double-pass cyclonic chambers, each serving a distinct purpose.
Single-pass chambers are ideal for low matrix samples, offering excellent signal stability. On the other hand, double-pass chambers are optimal for samples with high solids or organics, providing improved plasma stability.
