Description

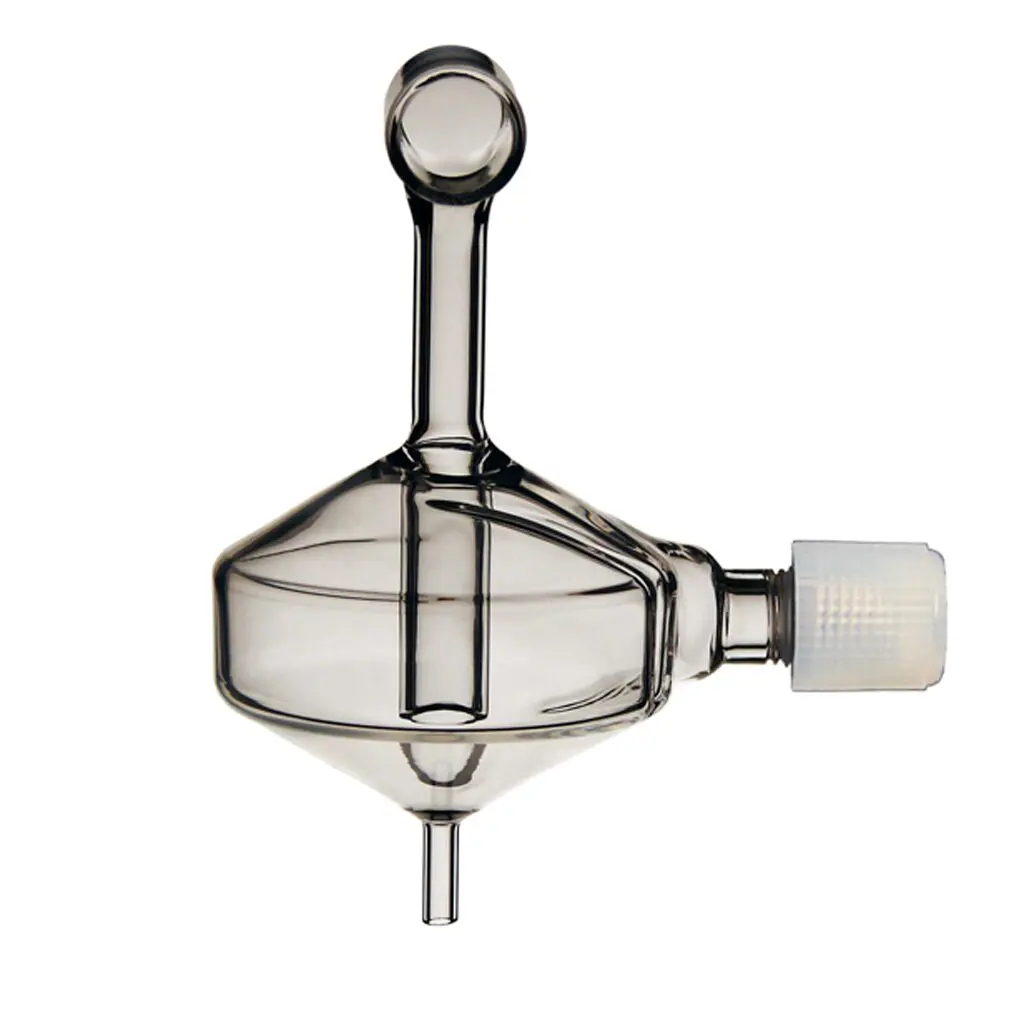

Spray Chamber – Pyrex – Cyclonic – Baffled – No O-Ring
Part Number:
PG300-30-LSI
Cross Reference(s)
Glass Expansion: 20-809-0208
Meinhard: ML130020
PerkinElmer: N0775352
Instrument Compatibility:
PerkinElmer Optima 2X00, 4X00, 5X00, 7X00, 8X00 DV
Detail:
Pyrex, Cyclonic, Baffled, Threaded O-ring free Lock Seal Inlet (LSI), includes Compression Ferrule Cap
Cyclonic Spray Chamber: Precision in ICP Analysis
A cyclonic spray chamber is a key component in Inductively Coupled Plasma (ICP) systems, known for its excellence in sample introduction. It employs a cyclonic action to separate larger droplets from the aerosol, directing them to waste, while finer droplets are delivered to the plasma.
This action ensures more sensitivity and consistency in ICP measurements. Precision Glassblowing’s cyclonic chambers, including their advanced models, meet various analytical demands.
Spray Chamber Design and Functionality
The design of cyclonic spray chambers focuses on maximizing transport efficiency and precision. Precision Glassblowing’s range includes single-pass and double-pass cyclonic chambers, each serving a distinct purpose.
Single-pass chambers are ideal for low matrix samples, offering excellent signal stability. On the other hand, double-pass chambers are optimal for samples with high solids or organics, providing improved plasma stability.
