Description

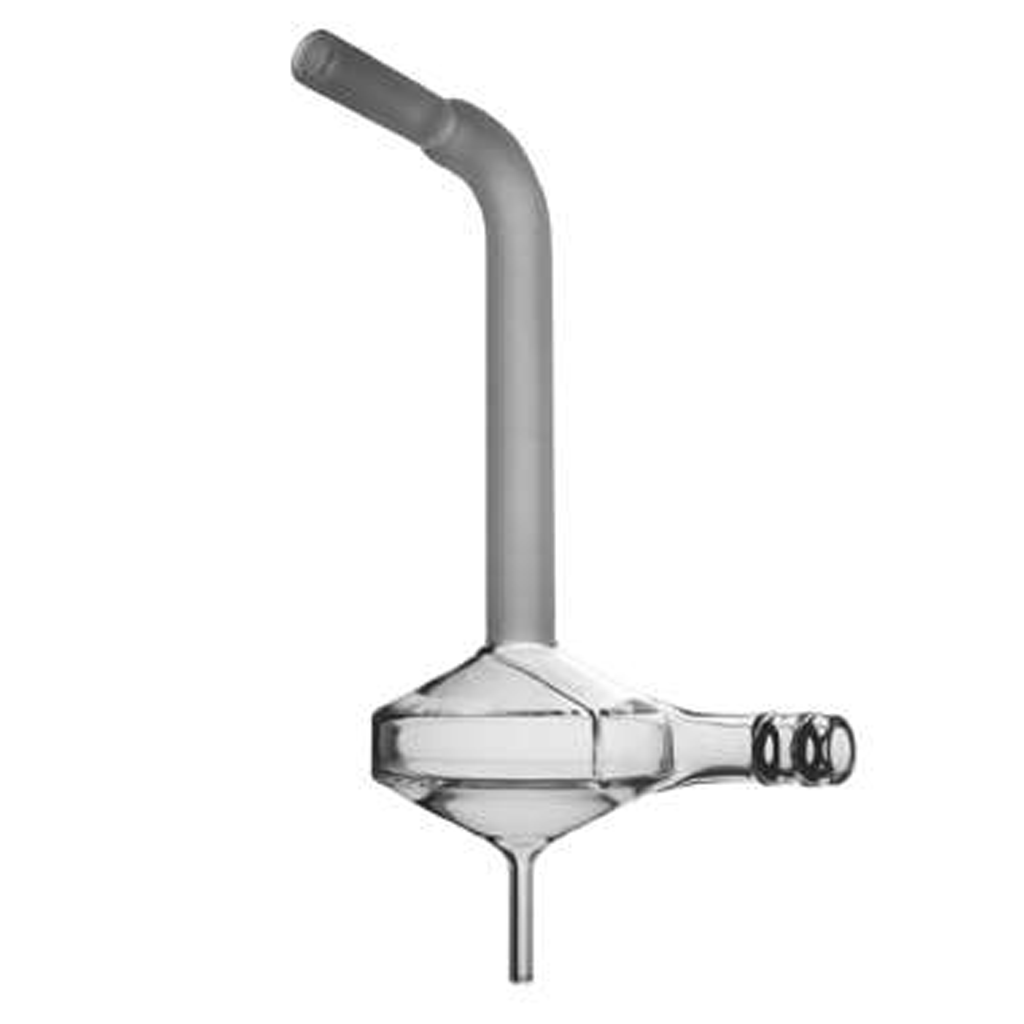

Pyrex Spray Chamber Cyclonic Long Neck Pump Drain 275-17
Part Number:
PG275-17
Cross Reference(s):
Thermo TJA P/N: 144515-00
Instrument Compatibility:
Thermo / TJA 61E Trace
Thermo / TJA Iris AP
Thermo / TJA Intrepid.
Detail:
Pyrex, Cyclonic, Axial, Pump Drain, Long (94mm) Neck, 2 x Pre-installed O-rings
Cyclonic Spray Chamber: Precision in ICP Analysis.
A cyclonic spray chamber is a key component in Inductively Coupled Plasma (ICP) systems, known for its excellence in sample introduction. It employs a cyclonic action to separate larger droplets from the aerosol, directing them to waste, while finer droplets are delivered to the plasma.
This action ensures more sensitivity and consistency in ICP measurements. Precision Glassblowing’s cyclonic chambers, including their advanced models, meet various analytical demands.
Spray Chamber Design and Functionality.
The design of cyclonic spray chambers focuses on maximizing transport efficiency and precision. Precision Glassblowing’s range includes single-pass and double-pass cyclonic chambers, each serving a distinct purpose.
Single-pass chambers are ideal for low matrix samples, offering excellent signal stability. On the other hand, double-pass chambers are optimal for samples with high solids or organics, providing improved plasma stability.
Optimal Materials for Cyclonic Spray Chambers.
For cyclonic spray chambers, materials like borosilicate glass are best due to their hardiness and chemical inertness. Materials such as these guarantee a reliable performance over time, which is vital for precise ICP analyses. Precision Glassblowing utilizes these superior materials to construct their cyclonic spray chambers, improving quality and ability to last.
