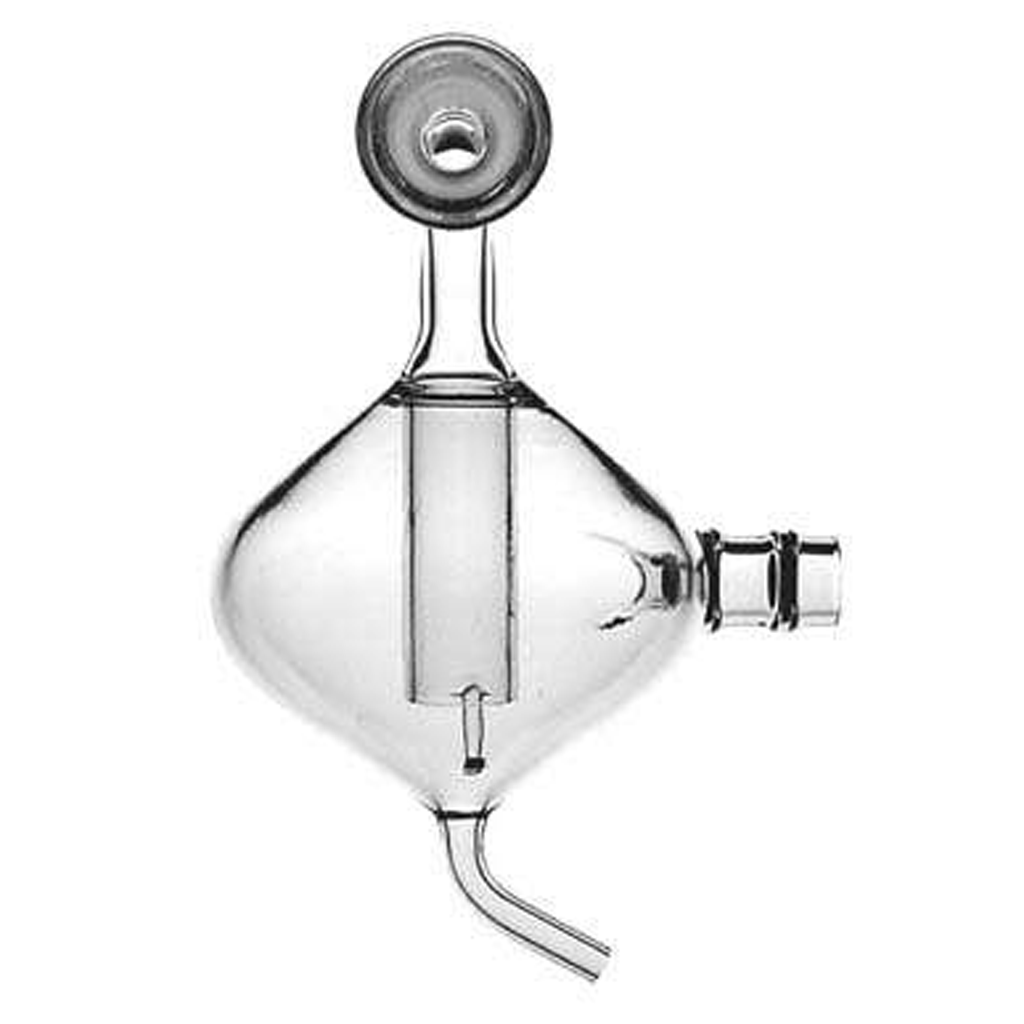

Pyrex Spray Chamber Cyclonic Axial Concentric – 550-57

$210

Tyledyne / Leeman ICP-MS and ICP-OES Instruments



Description

Pyrex Spray Chamber Cyclonic Axial Concentric – 550-57

Part Number:
PG550-57

Cross Reference(s)
OEM: 318-00079

Instrument Compatibility:
Tyledyne / Leeman ICP-MS and ICP-OES Instruments

Detail:
Pyrex, Cyclonic, Axial Orientation, Concentric Neb Input, 12/5 Socket, 4mm Drain, Pre-installed O-rings.

Cyclonic Spray Chamber: Precision in ICP Analysis

A cyclonic spray chamber is a key component in Inductively Coupled Plasma (ICP) systems, known for its excellence in sample introduction. It employs a cyclonic action to separate larger droplets from the aerosol, directing them to waste, while finer droplets are delivered to the plasma.

This action ensures more sensitivity and consistency in ICP measurements. Precision Glassblowing’s cyclonic chambers, including their advanced models, meet various analytical demands.

Optimal Materials for Cyclonic Spray Chambers

For cyclonic spray chambers, materials like borosilicate glass are best due to their hardiness and chemical inertness. Materials such as these guarantee a reliable performance over time, which is vital for precise ICP analyses. Precision Glassblowing utilizes these superior materials to construct their cyclonic spray chambers, improving quality and ability to last.

Do you have questions about Pyrex Spray Chamber Cyclonic Axial Concentric 550-57? Call Precision Glassblowing to Learn More.

Do you have questions? Visit our FAQs or Technical Information. And, there are several ways to contact Precision Glassblowing. Click here to pick one that works for you.

Additional information

Material

Pyrex

Type

Cyclonic, Axial Orientation, Concentric Neb Input

Drain

4mm Drain

Socket

12/5 Socket

O-ring(s)

2 x Pre-installed
