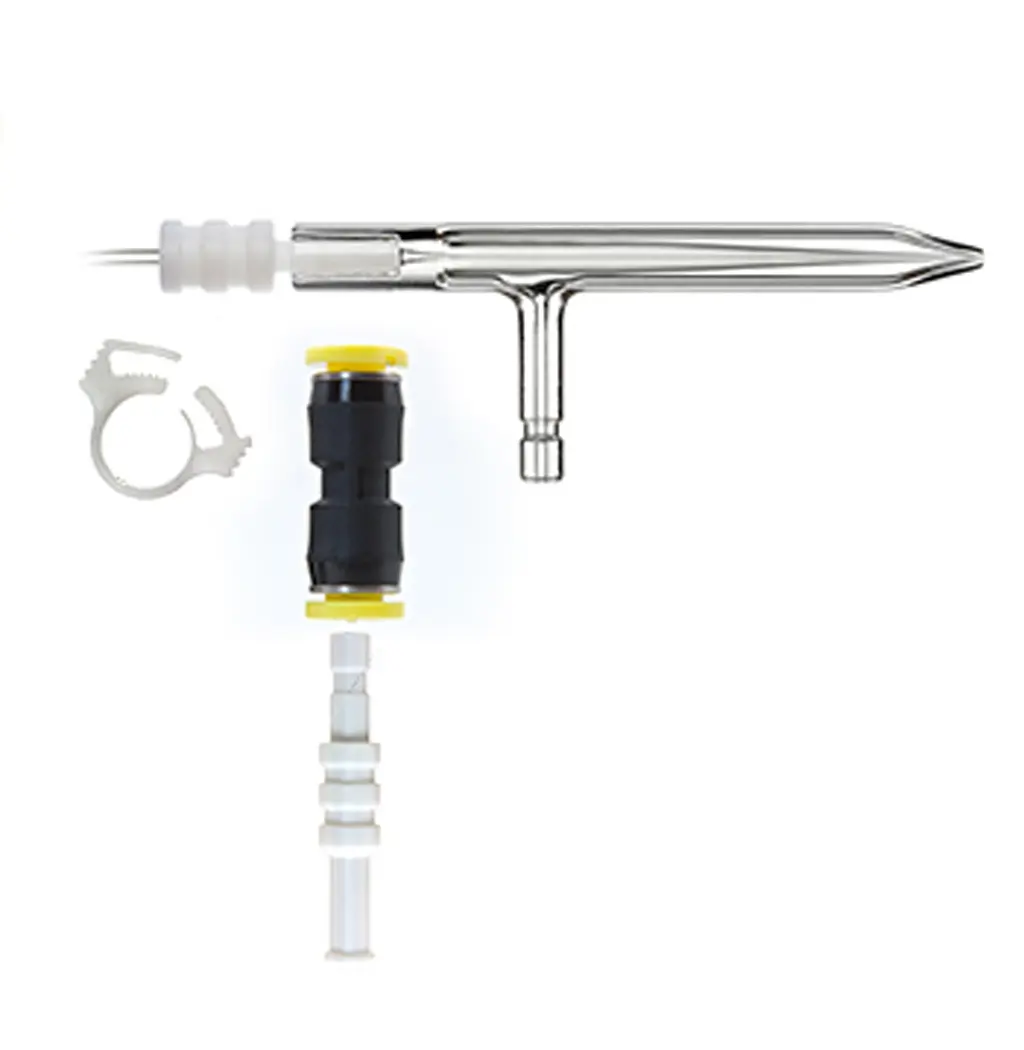

MicroMist Nebulizer 0.1mL/min w/EzyLok - AR35-1-FM01E

MicroMist Nebulizer 0.1mL/min w/EzyLok – AR35-1-FM01E

$841

Gas Flow 1 L/min | Sample Uptake 0.1 ml/min



Download EzyLok Argon Connector Flyer

Download MicroMist Flyer



Part No.: AR35-1-FM01E Categories: ,

Description

MicroMist Nebulizer 0.1mL/min w/EzyLok – AR35-1-FM01E

Part Number:
AR35-1-FM01E

Cross Reference(s)
None Available

Instrument Compatibility:
Multiple Instruments

Includes:

  • EZT-16-25 EzyFit Connector with 0.25mm ID x 1.6mm OD x 700mm L tubing (1 unit)
  • EzyLok Kit

Detail:

MicroMist Nebulizer 0.1mL/min with EzyFit & EzyLok

The MicroMist micro-uptake glass concentric nebulizer offers high performance for limited sample volumes. Specifically, MicroMists with sample uptakes 0.2 – 0.4 mL/min. are fit with an EzyFit connector with 1.3 o.d. x 0.50 mm i.d. x 700 mm long sample tubing. Similarly, MicroMists with sample uptakes 0.05 – 0.1 mL/min. are fit with an EzyFit connector with 1.3 o.d. x 0.25 mm i.d. x 700 mm long sample tubing. All MicroMist Nebulizers come with the EzyLok Argon connector.

What Makes the MicroMist Nebulizer Different?

The MicroMist Nebulizer 0.2 mL/min w/EzyLok – AR35-1-FM02LE is a Micro-uptake glass concentric nebulizer. It’s for low-flow Inductively Coupled Plasma applications (ICP). Generally, it offers high performance for limited sample volumes and has a reputation for precision and efficiency.

Here’s a breakdown of a few things that make it unique:
  • Micro-Uptake Design: The MicroMist is a special design for low-volume sample uptake. Chiefly, it’s suitable for situations where the sample is scarce or when there is high sensitivity.
  • Glass Concentric Nebulizer: It utilizes a glass concentric nebulizer design, that produces a fine aerosol with a narrow size range at low flow rates.
  • EzyLok Connector: The “EzyLok” feature refers to a specific type of connector for easy, secure connection of the nebulizer to the ICP instrument.
  • High Performance for Limited Samples: The design handles limited sample volumes effectively. This makes it suitable for applications such as routine ICP-MS Hg determinations and reducing matrix effects when used with Glass Expansion’s Cinnabar spray chamber.
  • Excellent Transport Efficiency and Precision: The MicroMist DC nebulizer has a reputation for excellent transport efficiency and precision. This is critical for accurate and reproducible results.
  • Standard for low-flow ICP-OES and ICP-MS applications: The MicroMist DC nebulizer has become the worldwide standard nebulizer for low-flow ICP-OES and ICP-MS applications.
Compared to other nebulizers:
  • V-Groove Nebulizers: While some nebulizers, like V-groove, can handle a wider range of samples, the MicroMist excels in low-flow applications and limited sample volumes.
  • Other Concentric Nebulizers: While other concentric nebulizers exist, the MicroMist is specifically optimized for low-flow and micro-uptake applications. That is because it offers better performance in these specific areas.

Do you have questions? Call Precision Glassblowing to Learn More.

If you have common questions and support, feel free to visit our FAQs or Technical Information. However, when there is a more perplexing issue or you just can’t find an answer, there are several ways to contact Precision Glassblowing to speak with a real person. Click here to pick one that works for you.
