Description

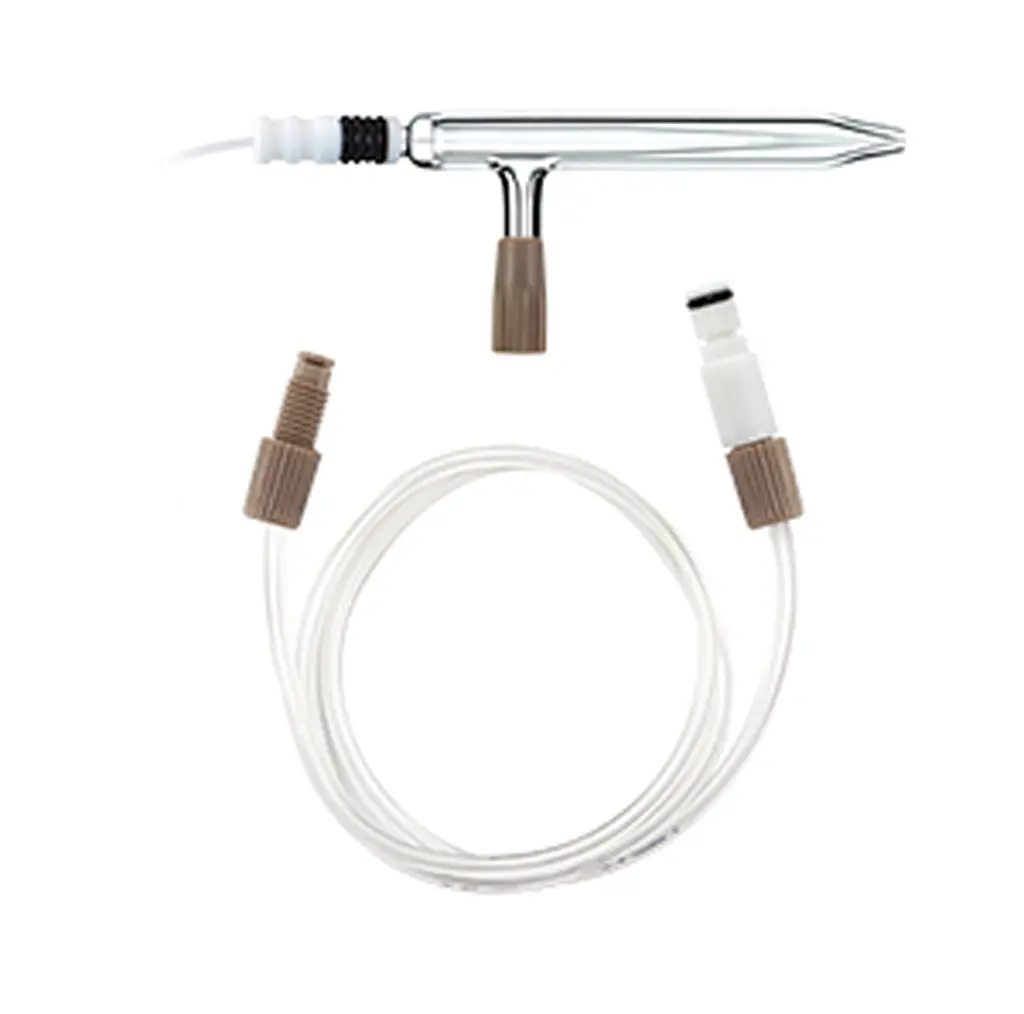

MicroMist DC Nebulizer 0.2mL/min – A11-1-UM02
Part Number:
A11-1-UM02
Cross Reference(s)
None Available
Instrument Compatibility:
Multiple Instruments
Includes:
- NFT-050 UniFit Connector with 0.50mm ID x 1.3mm OD x 700mm long tubing (1 piece)
- DC Fitting Type 11 with Ratchet Connector
Detail:
MicroMist (DC) Direct Connection is a special nebulizer for low-flow applications in Inductively Coupled Plasma (ICP) spectroscopy. Accordingly, MicroMist produces expedient results in high transport efficiency and precision for limited sample volumes, particularly in ICP-MS and ICP-OES.
The MicroMist micro-uptake glass concentric nebulizer offers high performance for limited sample volumes. MicroMists with sample uptakes 0.2 – 0.4 mL/min. are fitted with an EzyFit connector with 1.3 o.d. x 0.50 mm i.d. x 700 mm long sample tubing. MicroMists with sample uptakes 0.05 – 0.1 mL/min. are fitted with an EzyFit connector with 1.3 o.d. x 0.25 mm i.d. x 700 mm long sample tubing. All MicroMist Nebulizers are supplied with the EzyLok Argon connector.
Direct Connection (DC) Nebulizer?
The Glass Expansion DC (Direct Connection) nebulizer has a UniFit sample connector which slides easily over the sample arm and an argon gas connector configured to connect directly to your ICP.
The Conikal concentric nebulizer gives the most reproducible results for standard ICP analyses. It represents the choice nebulizer for high precision, routine aqueous and organic applications.
- Material: Borosilicate glass
- High physical reproducibility ~ 1%
- TDS tolerance, typically up to 5%
- High tolerance to particulates, typically up to 75um
- Low RSD’s due to highly accurate construction
- Standard available uptake: 1, 2 & 3mL/min
What Makes the MicroMist DC Nebulizer Different?
- Low-Flow Optimization: Designed for excellent transport efficiency and precision in low-flow applications. This makes it ideal for limited sample volumes.
- High Performance for Limited Samples: Enables routine ICP-MS Hg determinations and reduces matrix effects when used with Glass Expansion’s Cinnabar spray chamber.
- Proprietary VitriCone™ Capillary: Features a proprietary VitriCone™ capillary, contributing to the nebulizer’s high performance and precision.
- Single-Cell Applications: Recommended for single-cell biological applications.
- Direct Connect Design: Directly connects to the ICP instrument, simplifying the setup and reducing potential issues with spray chambers.
