Description

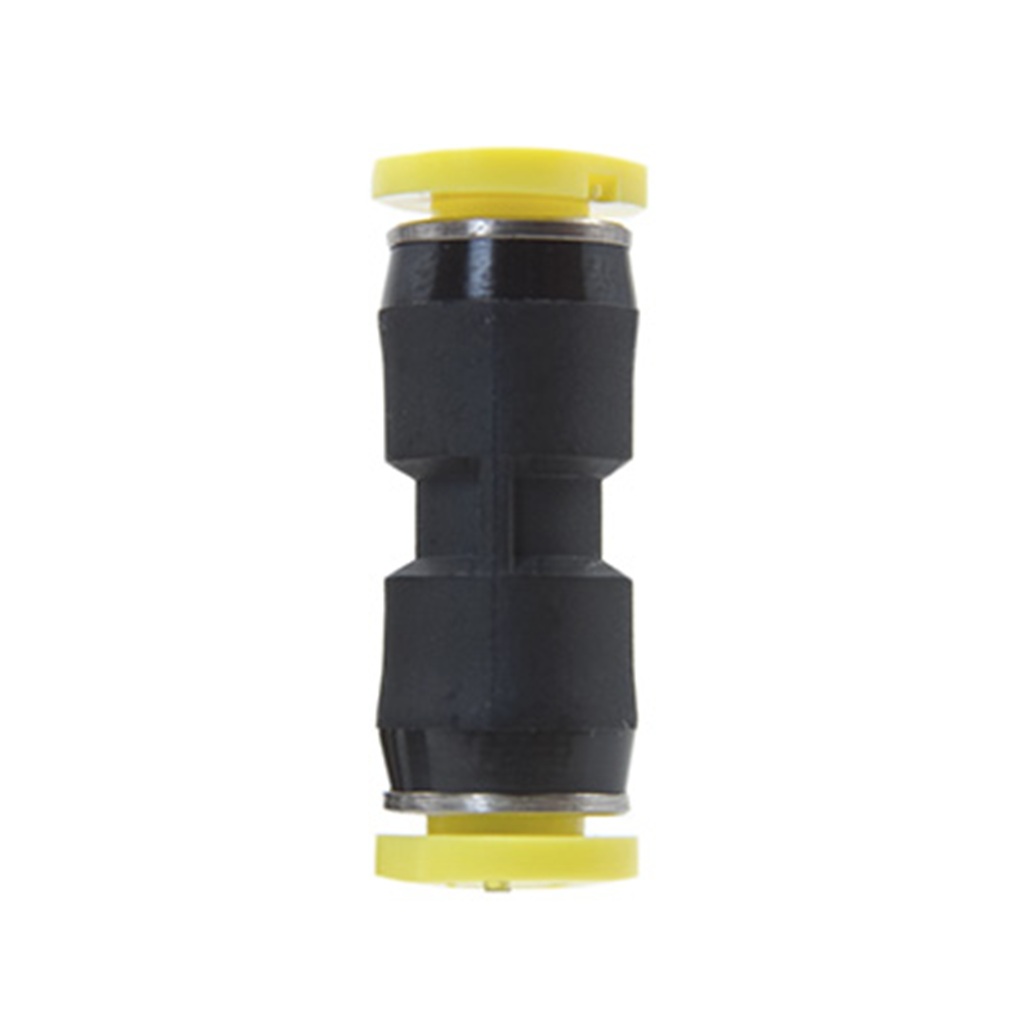

EzyLok Connector for 4mm Tubing QSM-4
Part Number:
QSM-4
Cross Reference(s)
Agilent G3266-80015
Shimadzu 046-00092-09
Instrument Compatibility:
Multiple Instruments
Detail:
EzyLok Connector for 4mm Tubing, Grease Free. quick-connect pneumatic component designed to provide a safe, secure, and grease-free connection for argon gas supply lines.
Primary Applications for EzyLok Connector
- Instrument Use: ICP-OES and ICP-MS Systems.
- Connection Point: Connects the argon gas supply line to the gas inlet side-arm of glass concentric nebulizers.
- Tubing Compatibility: Fits standard 4mm OD nylon or rigid supply tubing.
Key Features and Benefits
- Grease-Free: Operates securely without requiring messy vacuum grease or tape, preventing contamination.
- Safe Seal: Provides a leak-free, high-pressure stable connection for carrier gas.
- Quick Connect: Allows fast, easy attachment and removal of the nebulizer gas line during routine maintenance or cleaning
- Easy Push-On Assembly: Eliminates the need for tools or complex fittings when securing gas lines to the nebulizer side-arm.
- Over-Pressure Protection: Designed to safely pop off the nebulizer arm if the gas line experiences an unexpected over-pressure event, protecting expensive glassware from shattering
