Description

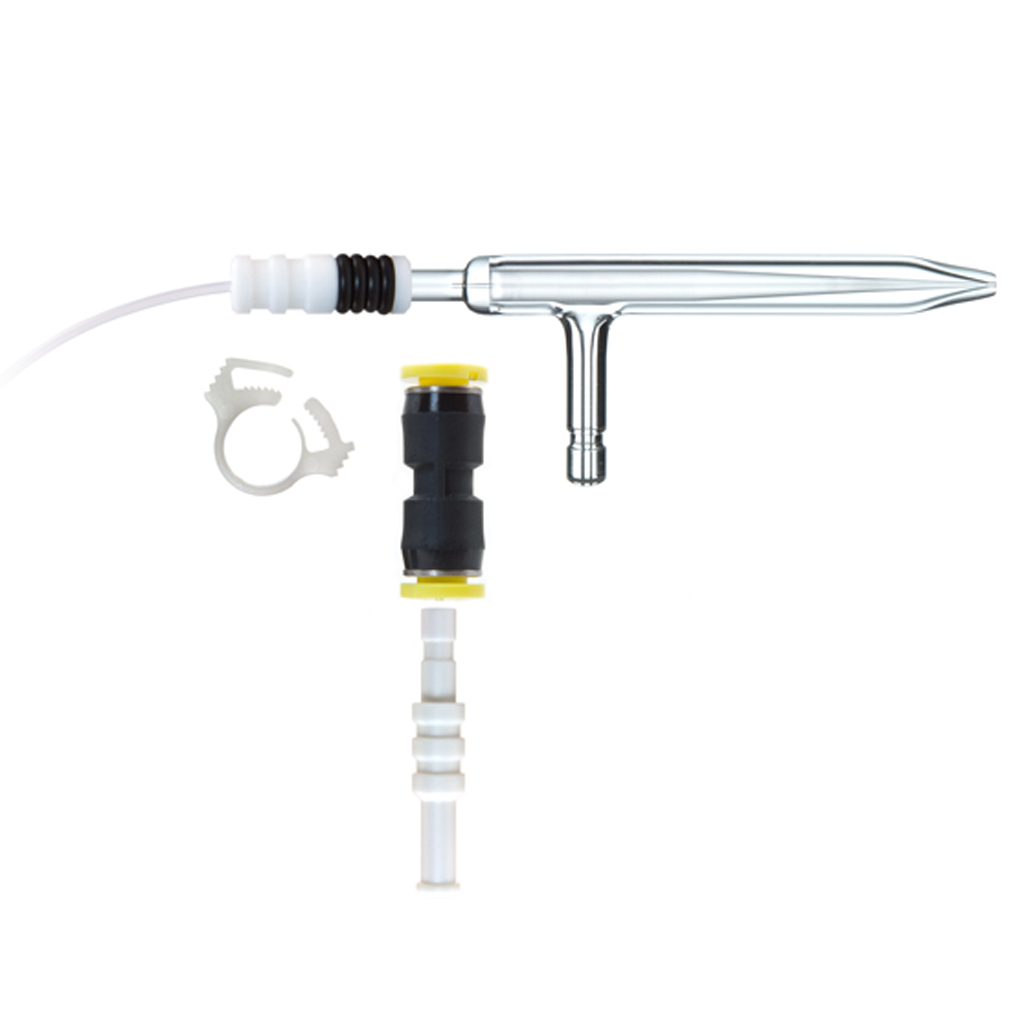

Conikal U-Series Nebulizer 1mL/min – ARG-1-UC1S
Part Number:
ARG-1-UC1S
Cross Reference(s)
None Available
Instrument Compatibility:
Multiple Instruments
Includes:
- NFT-16-75 UniFit Connector with 0.75mm ID x 1.6mm OD x 1500mm long tubing (1 piece)
- EzyLok Kit (EL-1)
Detail:
The Conikal concentric nebulizer gives the most reproducible results for standard ICP analyses. It represents the choice nebulizer for high precision, routine aqueous and organic applications.
- Material: Borosilicate glass
- High physical reproducibility ~ 1%
- TDS tolerance, typically up to 5%
- High tolerance to particulates, typically up to 75um
- Low RSD’s due to highly accurate construction
- Standard available uptake: 1, 2 & 3mL/min
Nexus™ Universal Connection Kit
The Nexus™ Universal Connection Kit is a one-size-fits-all nebulizer connection kit which enables you to use any of Glass Expansion’s industry- leading concentric nebulizers* with the sample introduction configuration of your choice, including switching valves, chromatographs (LC, HPLC, IC, etc.), and other high-performance accessories:
- Switching Valves: Simple and reliable custom-length connections to all high-throughput valve or syringe-drive systems.
- Speciation Analysis: Zero-dead-volume and secure, high-pressure connection for hyphenated techniques, such as LC-ICP-MS, HPLC-ICP-MS, IC-ICP-MS, and FFF-ICP-MS.
- High-Efficiency Sample Introduction System (HE-SIS): Connect to Glass Expansion’s HE-SIS, which provides up to 95% transport efficiency for a variety of applications.
- High-Precision Analysis: Create a high-pressure seal when performing self-aspiration for the most stable sample uptake and delivery.
These easy-to-install kits are completely inert and configured for 1.6 mm (1/16″) OD tubing, with PTFE ferrules that reliably seal with all commonly used capillary tubing materials, such as PFA, PTFE, FEP and PEEK. They provide a secure, zero-dead-volume direct connection to the liquid interface of a Glass Expansion nebulizer.
What is the Conikal U-Series Nebulizer?
The Conikal U-Series nebulizer is a glass concentric nebulizer, ideal for routine ICP-OES analysis of aqueous and organic samples, and known for its high precision and reproducibility. In addition, it is recommended for samples with up to 5% TDS without large particulates.
What are the Key Features of the Conikal U-Series Nebulizer?
Concentric Design: The Conikal nebulizer uses a concentric design, which contributes to its high precision and reproducibility in ICP-OES analysis.
Material: Made from borosilicate glass, ensuring durability and resistance to chemical attack.
Reproducibility: Known for high physical reproducibility, typically around 1%.
TDS Tolerance: Can handle samples with up to 5% total dissolved solids (TDS).
Particulate Tolerance: While not designed for samples with very large particulates, it can handle samples with particulates up to 75 micrometers
Standard Uptake Rates: Available in standard uptake rates of 1, 2, and 3 mL/min.
Applications: Suitable for routine analysis of aqueous and organic samples.
EzyLok Argon Connector: All Conikal U-Series nebulizers are supplied with the EzyLok argon connector.
How it Does the Conikal U-Series Nebulizer Differ from Other Nebulizers?
- Not Ideal for High Particulate Samples:
- While it can handle some particulates, it’s not the best choice for samples with very high concentrations of large particulates.
- Not Ideal for Samples with Hydrofluoric Acid:
- It is not ideal for samples containing hydrofluoric acid..
- Not Ideal for Samples with High TDS:
- While it can handle up to 5% TDS, it’s not designed for samples with very high TDS.
- Compared to Slurry Nebulizers:
- If you need to analyze samples with larger particle sizes or higher TDS, a slurry nebulizer might be a better option.
