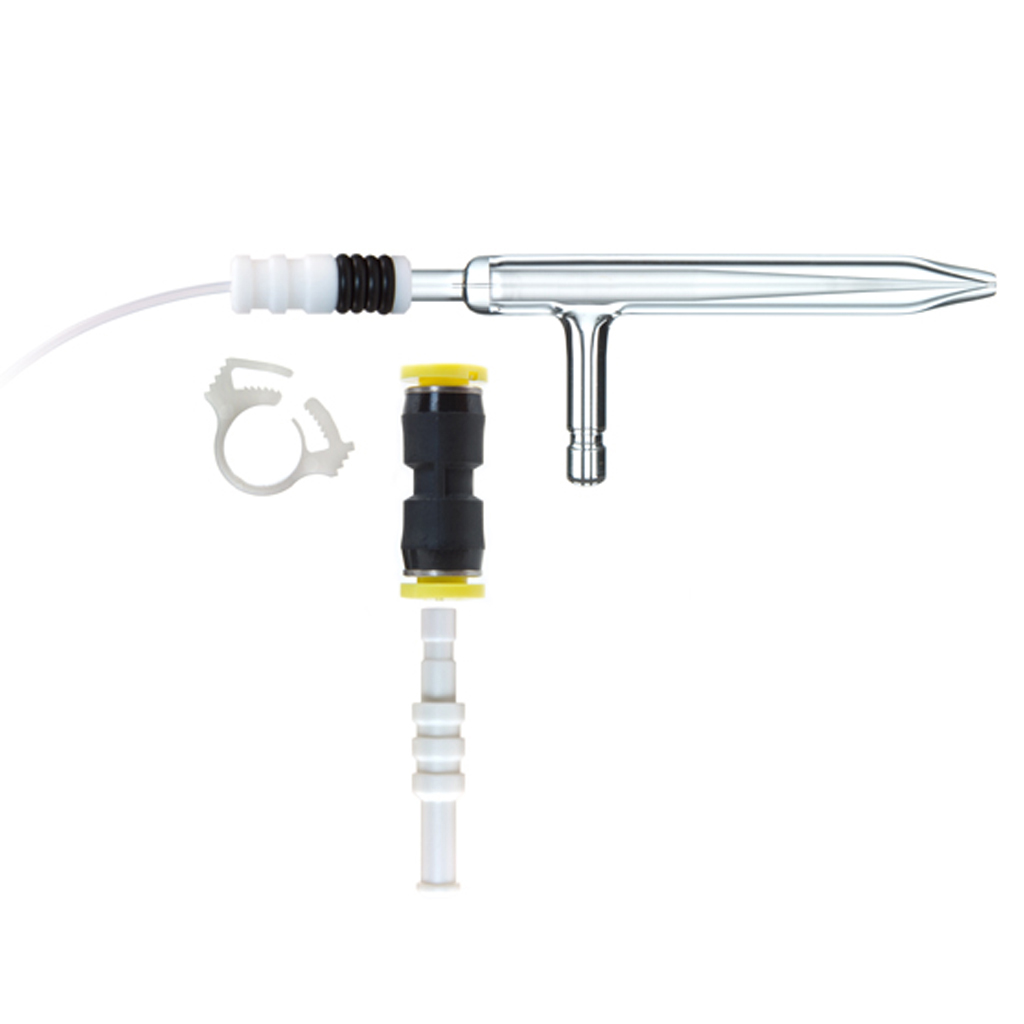

Conikal U-Series Nebulizer 1mL/min – ARG-1-UC1

$554

Gas Flow 1 L/min  |  Sample Uptake 1 ml/min



Nexus Universal Nebulizer Connection Kit

Part No.: ARG-1-UC1 Categories: ,

Description

Conikal U-Series Nebulizer 1mL/min – ARG-1-UC1

Part Number:
ARG-1-UC1

Cross Reference(s)
PerkinElmer N8121058
HORIBA JY 47.929.076 47.929.076 / 24.031.010 / 33.020.004 / 47.929.058

Instrument Compatibility:
Multiple Instruments

Includes:
1 x EzyLok Kit (EL-1)
1 x NFT-16-50 UniFit Connector with 0.50mm ID x 1.6mm OD x 700mm long tubing

Detail:
The Conikal concentric nebulizer gives the most reproducible results for standard ICP analyses. It represents the choice nebulizer for high precision, routine aqueous and organic applications.

  • Material: Borosilicate glass
  • High physical reproducibility ~ 1%
  • TDS tolerance, typically up to 5%
  • High tolerance to particulates, typically up to 75um
  • Low RSD’s due to highly accurate construction
  • Standard available uptake: 1, 2 & 3mL/min
