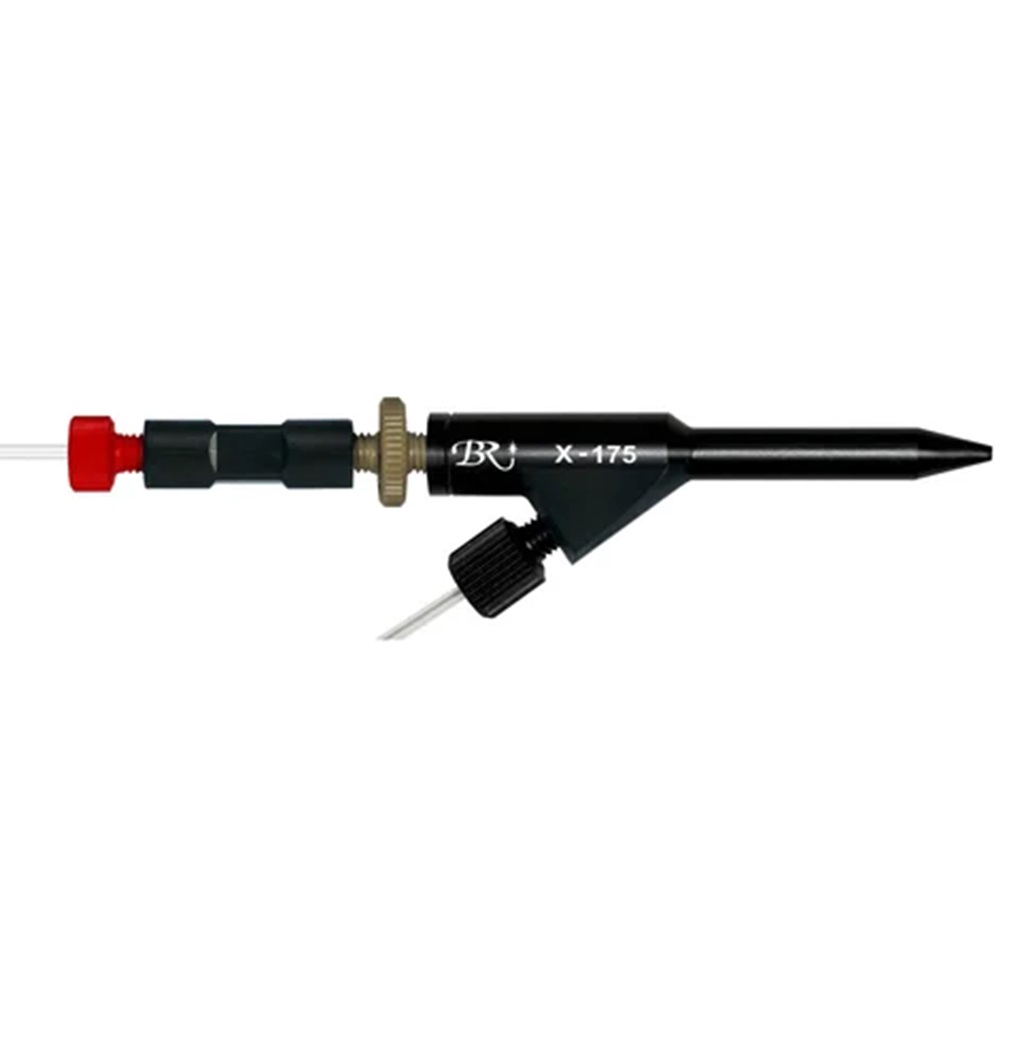

Burgener X-175 Nebulizer

Burgener – X-175

$1,300.00

Please provide us with your instrument make and model number when you place your order, and your nebulizer will arrive ready to install.



Comes with a 1/4-28 fitting on the sample line.

Part No.: X-175 Category:

Description

Burgener – X-175
P/N: X-175

Cross Reference(s)
None Available

Instrument Compatibility:
ICP-MS

Special Note:
All Burgener nebulizers are shipped with the appropriate fittings at no additional charge. Please provide us with your instrument make and model number when you place your order, and your nebulizer will arrive ready to install.

Detail:
Low Flow design for ICP/MS. Peek inner capillaries, PTFE nose, Peek Body for strength and longevity. Sample Capillary: 175 microns. Can operate on sample flow rates from 50 µl/min up to 1 ml/min. Excellent mist, is more stable and has lower %RSD than an Ari Mist.
The X-175 is set to run at a bit higher pressure than a Mira Mist, but well within most instruments standard ranges. Uses about 40 psi for .65 L/min

Note: This nebulizer’s sample flow rates are much lower than normal for ICP OES

Peek inner capillaries, PTFE nose, Peek Body for strength and longevity. Sample Capillary: 175 microns. Can operate on sample flow rates from 5 µl/min up to 1 ml/min.
The SC-175 is a variation of the X-175, but tuned for very low flow capability.
The SC-175 is set to run at a bit higher pressure than a Mira Mist, but well within most instruments standard ranges. Uses about 40 psi for .65 L/min

Special application low-flow nebulizer designed for CE-ICP-MS for use when low flow or exceedingly high stability and intensities are required.

Designed for CE-ICP-MS interface, the Mira Mist CE allows the CE capillary to extend to the tip of the nebulizer for zero suction, and zero back pressure CE interfacing with ICP-MS. Works best with a mini chamber.

Burgener Research Nebulizers

Burgener Research nebulizers work in inductively coupled plasma (ICP) to convert liquid samples into fine aerosols for introduction into the plasma. They use a patented Enhanced Parallel Path method to create a stable mist with small droplets.

ICP Nebulizers | Burgener Research. Burgener Nebulizers use the patented Enhanced Parallel Path Method. They work on the basic principle that any body of liquid is capable of producing a fine mist with a gas stream if they are in close proximity to each other.

Burgener Research Nebulizers

Features of Burgener Research nebulizers:
  • Large opening: The liquid path has a large opening to prevent tiny particles from plugging it.
  • High-flow and low-flow: Burgener Research offers designs for both high and low-flow situations.
  • Teflon sample and gas passages: Teflon is a non-wetting material that prevents sticking and cross-contamination between samples.
  • PEEK external bodies: PEEK is a tough and durable material that makes nebulizers long-lasting.
  • High-salt content and large particles: Burgener Research nebulizers are reliable for samples with high-salt content and large particles.
  • Small-sample quantities: Burgener Research nebulizers can efficiently nebulize even the smallest sample quantities.
The quality of the aerosol generated by a nebulizer directly impacts the sensitivity, stability, and overall performance of the ICP analysis.

Do you have questions about Burgener – X-175? Call Precision Glassblowing to Learn More.
