Description

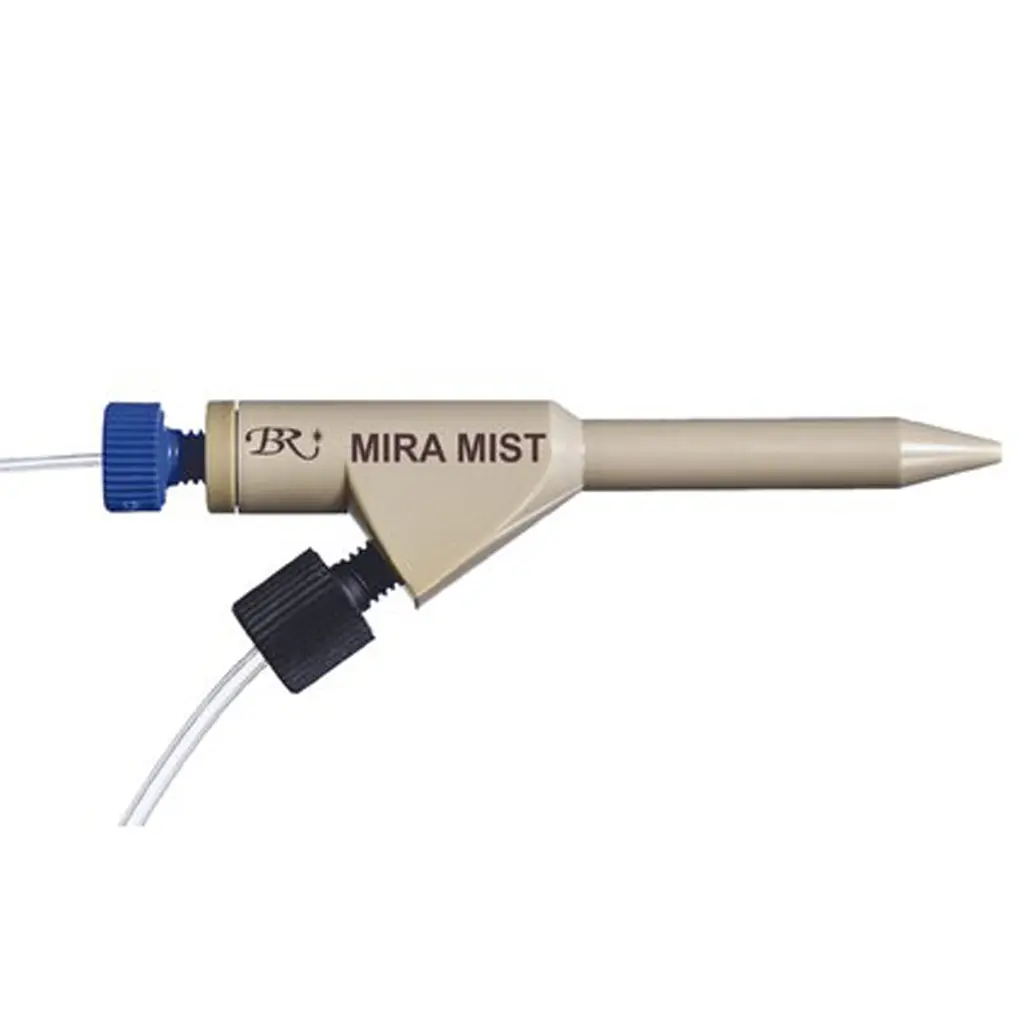

Burgener PEEK Mira Mist PMM-4000
P/N: PMM-4000
Cross Reference(s)
Agilent ICP-MS: G3161-80000
Agilent ICP-OES: CP914506
PerkinElmer: N0775330
Thermo iCAP: 842312051471
Thermo ICP-MS: 4600356
HORIBA JY: 47.929.024
Instrument Compatibility:
Multiple Instruments
Special Note:
All Burgener nebulizers are shipped with the appropriate fittings at no additional charge. Please provide us with your instrument make and model number when you place your order, and your nebulizer will arrive ready to install.
Detail:
PEEK Mira Mist Nebulizer, 0.2 – 2.5 mL/min, 45psi (HF Resistant).
Works for nearly all samples except concentrated acids and some organic solvents. Still has Teflon capillaries for the samples and for the gas.
Features:
• Enhanced Parallel Path Teflon Nebulizer.
• Can operate on 0.2 ml/min to 2.5 ml/min.
• Excellent mist, and can handle high level of particulates in sample.
• Fits regular chambers as a direct replacement for glass concentric nebulizers.
• Operates on standard pressures of 35 – 45 psi.
Peek inner capillaries, PTFE nose, Peek Body for strength and longevity. Sample Capillary: 175 microns. Can operate on sample flow rates from 5 µl/min up to 1 ml/min.
The SC-175 is a variation of the X-175, but tuned for very low flow capability.
The SC-175 is set to run at a bit higher pressure than a Mira Mist, but well within most instruments standard ranges. Uses about 40 psi for .65 L/min
Special application low-flow nebulizer designed for CE-ICP-MS for use when low flow or exceedingly high stability and intensities are required.
Designed for CE-ICP-MS interface, the Mira Mist CE allows the CE capillary to extend to the tip of the nebulizer for zero suction, and zero back pressure CE interfacing with ICP-MS. Works best with a mini chamber.
Burgener Research Nebulizers
Burgener Research nebulizers work in inductively coupled plasma (ICP) to convert liquid samples into fine aerosols for introduction into the plasma. They use a patented Enhanced Parallel Path method to create a stable mist with small droplets.
Burgener Research Nebulizers
- Large opening: The liquid path has a large opening to prevent tiny particles from plugging it.
- High-flow and low-flow: Burgener Research offers designs for both high and low-flow situations.
- Teflon sample and gas passages: Teflon is a non-wetting material that prevents sticking and cross-contamination between samples.
- PEEK external bodies: PEEK is a tough and durable material that makes nebulizers long-lasting.
- High-salt content and large particles: Burgener Research nebulizers are reliable for samples with high-salt content and large particles.
- Small-sample quantities: Burgener Research nebulizers can efficiently nebulize even the smallest sample quantities.
